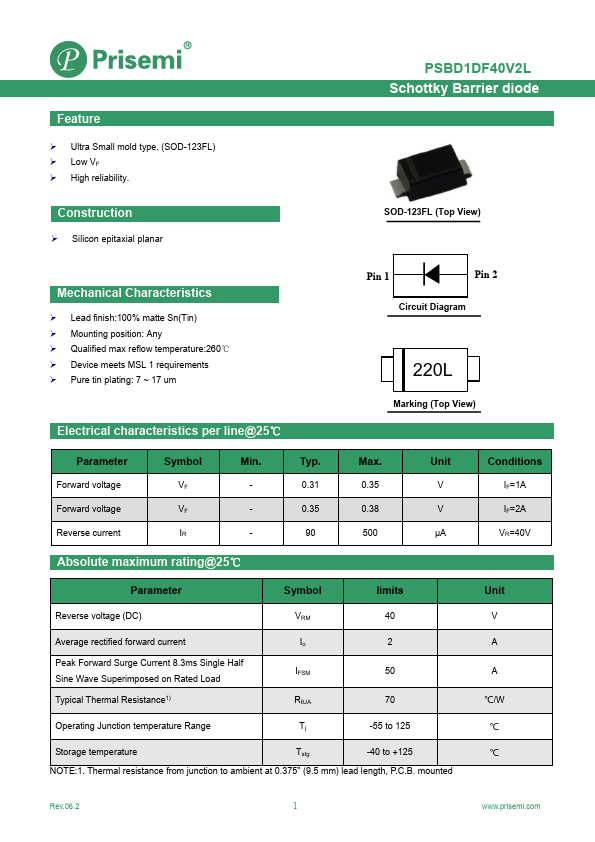

PSBD1DF40V2L
Feature
- Ultra Small mold type. (SOD-123FL)
- Low VF
- High reliability.
PSBD1DF40V2L Schottky Barrier diode
Construction
- Silicon epitaxial planar
SOD-123FL (Top View)
Mechanical Characteristics
- Lead finish:100% matte Sn(Tin)
- Mounting position: Any

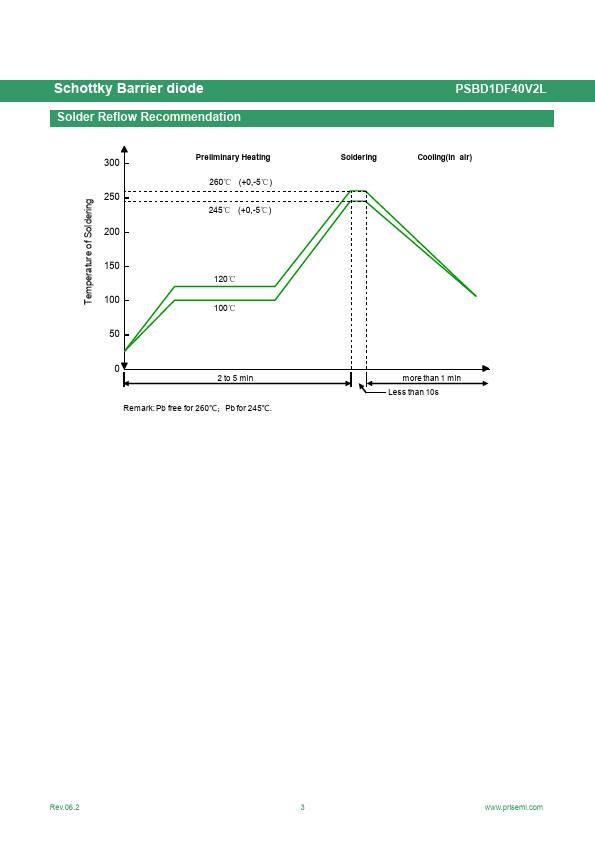

- Qualified max reflow temperature:260℃
- Device meets MSL 1 requirements
- Pure tin plating: 7 ~ 17 um
Electrical characteristics per line@25℃
Pin 1
Pin 2
Circuit Diagram
220L
Marking (Top View)
Parameter
Forward voltage Forward voltage Reverse current
Symbol
VF VF IR
Min.
- Absolute maximum rating@25℃
Typ.
0.31 0.35 90
Max.
0.35 0.38 500
Unit
V V µA
Conditions
IF=1A IF=2A VR=40V
Parameter
Symbol limits
Reverse voltage (DC)
Average rectified forward...
