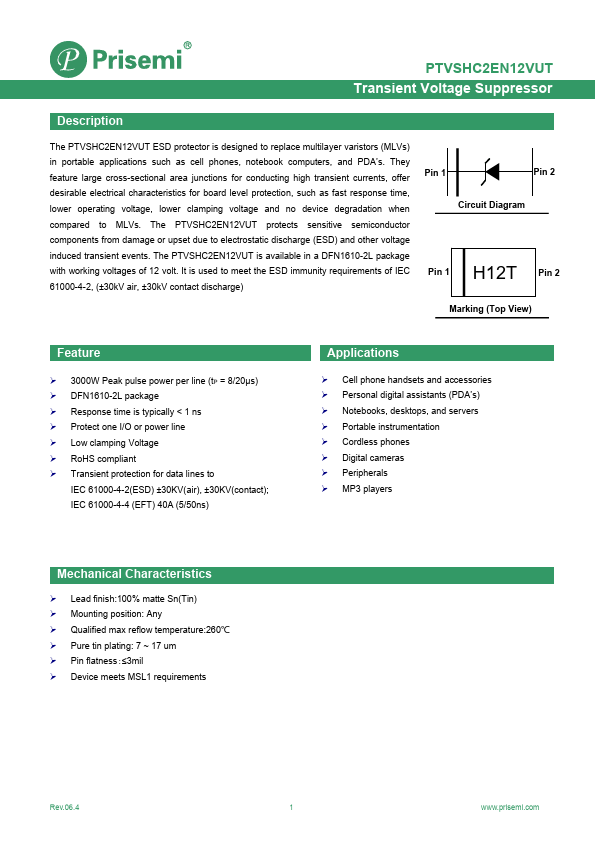

PTVSHC2EN12VUT
Description
The PTVSHC2EN12VUT ESD protector is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook puters, and PDA’s. They feature large cross-sectional area junctions for conducting high transient currents, offer desirable electrical characteristics for board level protection, such as fast response time, lower operating voltage, lower clamping voltage and no device degradation when pared to MLVs. The PTVSHC2EN12VUT protects sensitive semiconductor ponents from damage or upset due to electrostatic discharge (ESD) and other voltage induced transient events. The PTVSHC2EN12VUT is available in a DFN1610-2L package with working voltages of 12 volt. It is used to meet the ESD immunity requirements of IEC 61000-4-2, (±30k V air, ±30k V contact discharge)
Pin 1
Pin 2
Circuit Diagram
Pin 1 H12T Pin 2
Marking (Top View)
Feature
- 3000W Peak pulse power per line (t P = 8/20μs)
- DFN1610-2L package
- Response time is typically < 1 ns
-...
