PTVSHC3D4V5B - Bi-directional 4.5V High Capacitance TVS Protector

Prisemi

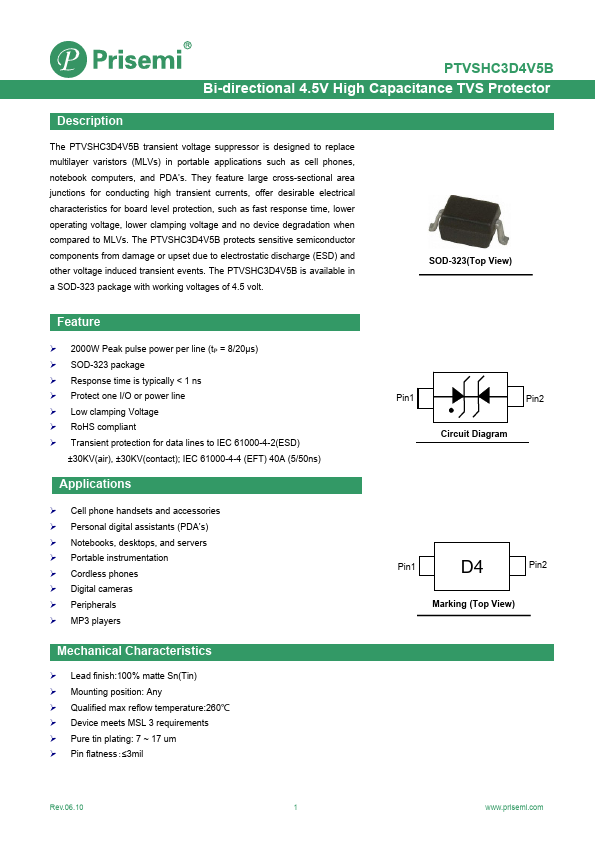

The PTVSHC3D4V5B by Prisemi is a Bi-directional 4.5V High Capacitance TVS Protector. Below is the official datasheet preview.

📥 Download Datasheet

PTVSHC3D4V5B Bi-directional 4.5V High Capacitance TVS Protector by Prisemi - Datasheet Preview — Official preview page of the **PTVSHC3D4V5B** Bi-directional 4.5V High Capacitance TVS Protector datasheet (Prisemi).

Datasheet Details

Part number	PTVSHC3D4V5B
Manufacturer	Prisemi
File Size	246.24 KB
Description	Bi-directional 4.5V High Capacitance TVS Protector
Datasheet	PTVSHC3D4V5B-Prisemi.pdf

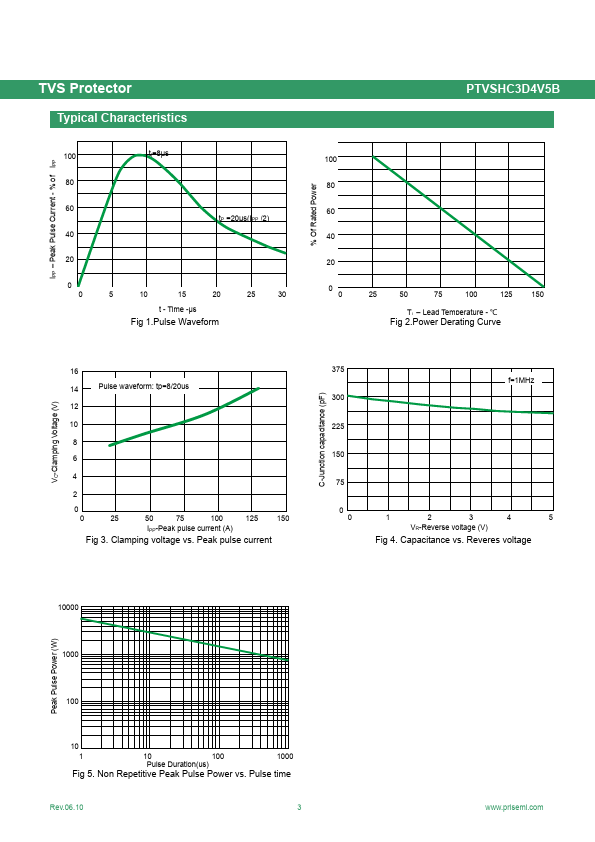

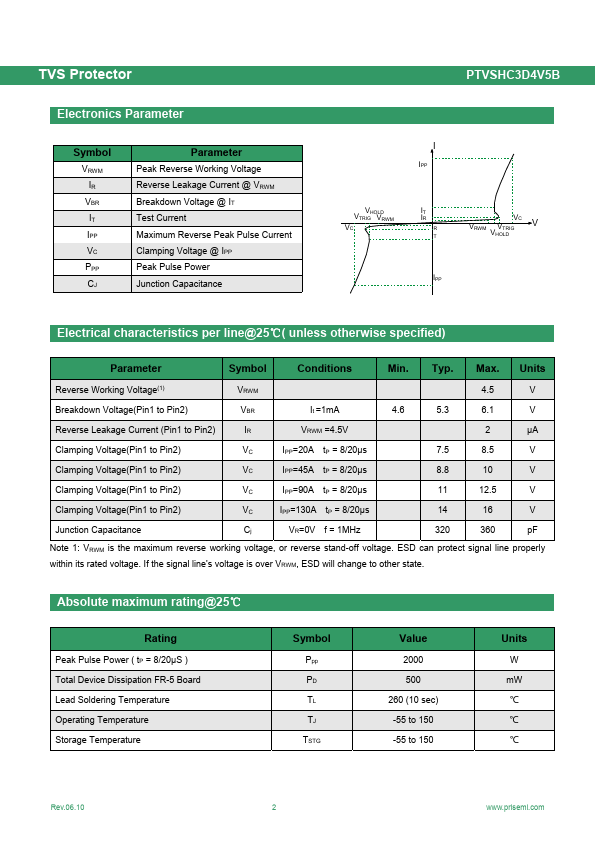

Additional preview pages of the PTVSHC3D4V5B datasheet.

PTVSHC3D4V5B Product details

Description

The PTVSHC3D4V5B transient voltage suppressor is designed to replace multilayer varistors (MLVs) in portable applications such as cell phones, notebook computers, and PDA’s.
