PESD05BULC - ULTRA low capacitance TVS ARRAY

Datasheet Summary

Description

The PESD05BULC is an ultra low capacitance TVS array that is designed to protect components from damage or upset due to electrostatic discharge (ESD).

The device is offered in a bidirectional configuration and is available in two lead DFN-0603 package.

Features

  • a large cross sectional area junction for conducting high transient currents, fast response time and low operating voltage. This device meets the IEC 61000-4-2 and IEC 61000-4 requirements. DFN-0603-2L package Features.
  • Compatible with IEC 61000-4-2 (ESD): Air ±15kV, Contact ±8kV.
  • Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns.
  • 60 Watts Peak Pulse Power per Line (tp = 8/20µs).
  • Bidirectional Configuration.
  • Protects 1 Data Line.
  • Low Clamping.

📥 Download Datasheet

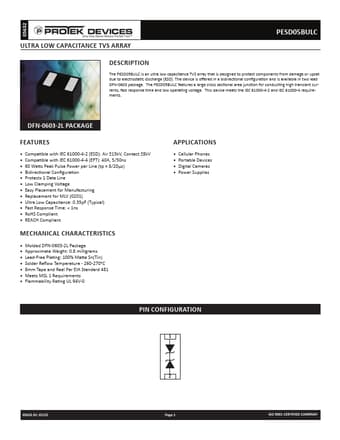

Datasheet preview – PESD05BULC

Datasheet Details

Part number PESD05BULC
Manufacturer ProTek Devices
File Size 520.29 KB
Description ULTRA low capacitance TVS ARRAY
Datasheet download datasheet PESD05BULC Datasheet
Additional preview pages of the PESD05BULC datasheet.

📁 Similar Datasheet

Other Datasheets by ProTek Devices

Full PDF Text Transcription

Click to expand full text
05632 Only One Name Means ProTek’Tion™ ULTRA low capacitance TVS ARRAY PESD05BULC Description The PESD05BULC is an ultra low capacitance TVS array that is designed to protect components from damage or upset due to electrostatic discharge (ESD). The device is offered in a bidirectional configuration and is available in two lead DFN-0603 package. The PESD05BULC features a large cross sectional area junction for conducting high transient currents, fast response time and low operating voltage. This device meets the IEC 61000-4-2 and IEC 61000-4 requirements.
