SM30KPA30A - 30kW Surface Mount Power TVS Component

ProTek Devices

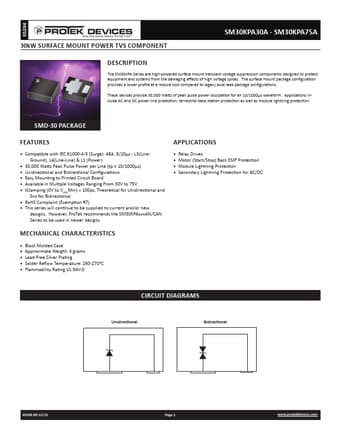

SM30KPA30A Datasheet Preview — Preview of SM30KPA30A PDF

Datasheet Details

Part number	SM30KPA30A
Manufacturer	ProTek Devices
File Size	349.59 KB
Description	30kW Surface Mount Power TVS Component
Datasheet	SM30KPA30A-ProTekDevices.pdf

SM30KPA30A Product details

Description

The SM30KPA Series are high-powered surface mount transient voltage suppression components designed to protect equipment and systems from the damaging effects of high voltage spikes.

Features

Compatible with IEC 61000-4-5 (Surge): 48A, 8/20µs - L3(LineGround), L4(Line-Line) & L1 (Power).
30,000 Watts Peak Pulse Power per Line (tp = 10/1000µs).
Unidirectional and Bidirectional Configurations.
Easy Mounting to Printed Circuit Board.
Available in Multiple Voltages Ranging From 30V to 75V.
tCl5anmspfionrgB(i0dViretoctVio(BnR)aMl in) < 100ps, Theoretical for Unidirectional and.
RoHS Complaint (Exemption #7).
