30KPA48A, 30KPA28A, 30kW POWER TVS COMPONENT

05113 Only One Name Means ProTek’Tion™ 30kW POWER TVS COMPONENT 30KPA Series RTCA DO-160G COMPLIANT PRODUCT .
The 30KPA Series, are discrete 30,000 Watt, silicon transient voltage suppressors (TVS) designed for use in applications where large voltage transient.

30KPA28A-ProtekDevices.pdf

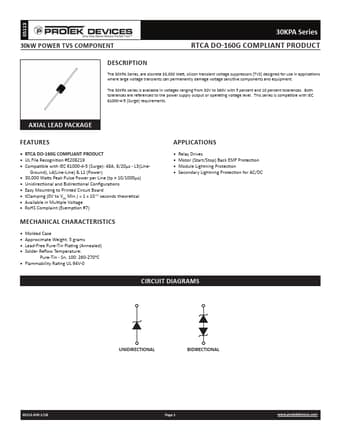

30KPA48A Datasheet Preview — This datasheet PDF includes multiple part numbers: 30KPA48A, 30KPA28A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

30KPA48A, 30KPA28A

Manufacturer:

Protek Devices

File Size:

301.63 KB

Description:

30kW POWER TVS COMPONENT

Note:

This datasheet PDF includes multiple part numbers: 30KPA48A, 30KPA28A.
Please refer to the document for exact specifications by model.

Features

* RTCA DO-160G COMPLIANT PRODUCT
* UL File Recognition #E208219
* Compatible with IEC 61000-4-5 (Surge): 48A, 8/20µs - L3(Line- Ground), L4(Line-Line) & L1 (Power)
* 30,000 Watts Peak Pulse Power per Line (tp = 10/1000µs)
* Unidirectional and Bidire

Applications

* where large voltage transients can permanently damage voltage sensitive components and equipment. The 30KPA series is available in voltages ranging from 30V to 360V with 5 percent and 10 percent tolerances. Both tolerances are referenced to the power supply output or operating voltage level. This se
