CSP0201 - BIDIRECTIONAL TVS COMPONENT

Datasheet Summary

Features

Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV.
Available in 5.0V.
Bidirectional Configuration and Monolithic Structure.
Protection for 1 Line.
RoHS Compliant.
REACH Compliant.

Protek Devices

📥 Download Datasheet

Datasheet Details

Part number	CSP0201
Manufacturer	Protek Devices
File Size	265.54 KB
Description	BIDIRECTIONAL TVS COMPONENT
Datasheet	CSP0201 Datasheet

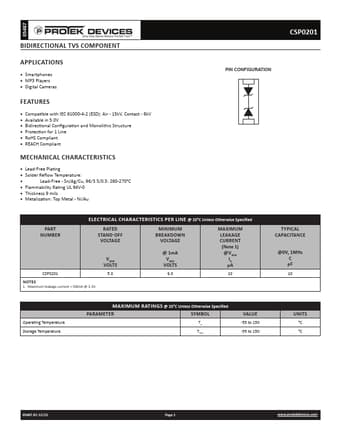

Additional preview pages of the CSP0201 datasheet.

📁 Similar Datasheet

CSP0603 - Wire Wound Power Inductor (HITANO)
CSP0605 - Wire Wound Power Inductor (HITANO)
CSP0703 - Wire Wound Power Inductor (HITANO)
CSP0704 - Wire Wound Power Inductor (HITANO)
CSP10200SG-A - Super Low Barrier High Voltage Power Rectifier (CITC)
CSP1027 - Voice Band Codec (Lucent Technologies)
CSP1045S-A - Super Low Barrier High Voltage Power Rectifier (CITC)
CSP1060S-A - Super Low Barrier High Voltage Power Rectifier (CITC)
CSP10L45S - Super Low Barrier High Voltage Power Rectifier (CITC)
CSP10L45S-A - Super Low Barrier High Voltage Power Rectifier (CITC)

Other Datasheets by Protek Devices

Full PDF Text Transcription

Click to expand full text

05487 Only One Name Means ProTek’Tion™ BIDIRECTIONAL TVS COMPONENT APPLICATIONS • Smartphones • MP3 Players • Digital Cameras FEATURES • Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV • Available in 5.0V • Bidirectional Configuration and Monolithic Structure • Protection for 1 Line • RoHS Compliant • REACH Compliant MECHANICAL CHARACTERISTICS • Lead-Free Plating • Solder Reflow Temperature: • Lead-Free - Sn/Ag/Cu, 96/3.5/0.

Published: Apr 19, 2016 |
