DA24CL - HIGH POWERED MULTI-LINE TVS ARRAY

Product Overview

Protek Devices

📥 Download Datasheet

DA24CL HIGH POWERED MULTI-LINE TVS ARRAY by Protek Devices - Datasheet Preview — Datasheet preview – DA24CL

Datasheet Details

Part number	DA24CL
Manufacturer	Protek Devices
File Size	307.45 KB
Description	HIGH POWERED MULTI-LINE TVS ARRAY
Datasheet	DA24CL Datasheet
Note	This datasheet PDF includes multiple part numbers: DA24CL, DA24L. Please refer to the document for exact specifications by model.

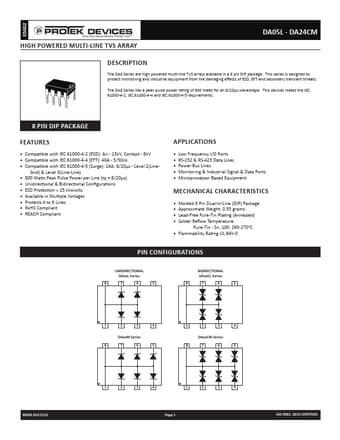

Additional preview pages of the DA24CL datasheet.

Product details

Description

The DA8 Series are high powered multi-line TVS arrays available in a 8 pin DIP package.

Features

Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV.
Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns.
Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line- Gnd) & Level 3(Line-Line).
800 Watts Peak Pulse Power per Line (tp = 8/20µs).
Unidirectional & Bidirectional Configurations.
ESD Protection > 25 kilovolts.
Available in Multiple Voltages.
Protects 4 to 6 Lines.
RoHS Compliant.
