DLZ-13CA

HIGH POWERED MULTI-LINE TVS ARRAY

DLZ-13CA Features

* RTCA DO-160G COMPLIANT PRODUCT

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV

* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns

* Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line- Gnd) & Level 3(Line-Line)

* MIL-STD-

DLZ-13CA General Description

The DLZ Series of silicon transient voltage suppressors (TVS) are available in a ceramic, hermetically sealed dual-in-line package. This series is designed to protect aerospace, standard TTL and MOS bus lines in applications where NEMP, ESD and other induced voltage surges can damage or upset voltag.

DLZ-13CA Datasheet (301.13 KB)

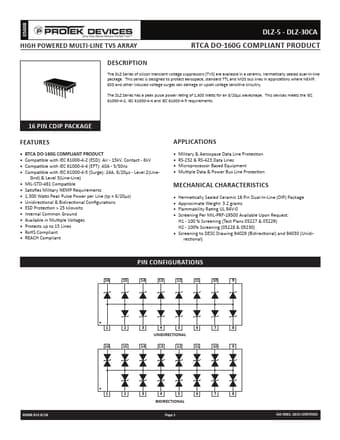

Preview of DLZ-13CA PDF

Datasheet Details

Part number:

DLZ-13CA

Manufacturer:

Protek Devices

File Size:

301.13 KB

Description:

High powered multi-line tvs array.
