PAC-130 - AC POWERLINE TVS COMPONENT

This page provides the datasheet information for the PAC-130, a member of the PAC-xxx AC POWERLINE TVS COMPONENT family.

Datasheet Summary

Features

  • ✔ 5000 to 6900 kilowatts Peak Pulse Power per Line (tp=8/20µs) ✔ Compact Module in a Bidirectional Configuration ✔ Provides Primary Protection ✔ Glass Passivated Chip ✔ Easy Mounting to Printed Circuit Board ✔ Available in 3 Voltages: 95VAC, 130VAC & 240VAC ✔ RoHS Compliant RADIAL LEAD.

📥 Download Datasheet

Datasheet preview – PAC-130

Datasheet Details

Part number PAC-130
Manufacturer Protek Devices
File Size 64.53 KB
Description AC POWERLINE TVS COMPONENT
Datasheet download datasheet PAC-130 Datasheet
Additional preview pages of the PAC-130 datasheet.

📁 Similar Datasheet

  • PAC001 - P/Active 1% Tolerance Dual Thevenin Termination Network (California Micro Devices Corp)
  • PAC001DTFQR - P/Active 1% Tolerance Dual Thevenin Termination Network (California Micro Devices Corp)
  • PAC001DTFQT - P/Active 1% Tolerance Dual Thevenin Termination Network (California Micro Devices Corp)
  • PAC002DTFQR - P/Active 1% Tolerance Dual Thevenin Termination Network (California Micro Devices Corp)
  • PAC002DTFQT - P/Active 1% Tolerance Dual Thevenin Termination Network (California Micro Devices Corp)
  • PAC002SPFQ - P/Active 1% Tolerance Seriers/Parallel Termination Network (California Micro Devices Corp)
  • PAC002SPFQF - P/Active 1% Tolerance Seriers/Parallel Termination Network (California Micro Devices Corp)
  • PAC002SPFQR - P/Active 1% Tolerance Seriers/Parallel Termination Network (California Micro Devices Corp)
  • PAC003DTFQR - P/Active 1% Tolerance Dual Thevenin Termination Network (California Micro Devices Corp)
  • PAC003DTFQT - P/Active 1% Tolerance Dual Thevenin Termination Network (California Micro Devices Corp)
Other Datasheets by Protek Devices
  • PAC-240 - AC POWERLINE TVS COMPONENT
  • PAC-95 - AC POWERLINE TVS COMPONENT

Full PDF Text Transcription

Click to expand full text

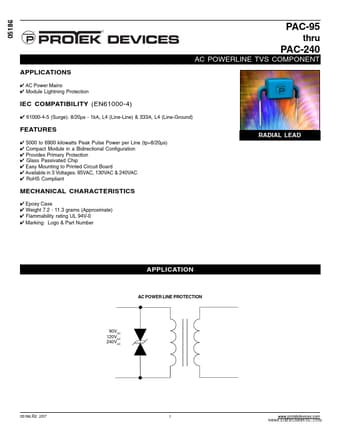

05186 PAC-95 thru PAC-240 AC POWERLINE TVS COMPONENT APPLICATIONS ✔ AC Power Mains ✔ Module Lightning Protection IEC COMPATIBILITY (EN61000-4) ✔ 61000-4-5 (Surge): 8/20µs - 1kA, L4 (Line-Line) & 333A, L4 (Line-Ground) FEATURES ✔ 5000 to 6900 kilowatts Peak Pulse Power per Line (tp=8/20µs) ✔ Compact Module in a Bidirectional Configuration ✔ Provides Primary Protection ✔ Glass Passivated Chip ✔ Easy Mounting to Printed Circuit Board ✔ Available in 3 Voltages: 95VAC, 130VAC & 240VAC ✔ RoHS Compliant RADIAL LEAD MECHANICAL CHARACTERISTICS ✔ Epoxy Case ✔ Weight 7.2 - 11.3 grams (Approximate) ✔ Flammability rating UL 94V-0 ✔ Marking: Logo & Part Number APPLICATION AC POWER LINE PROTECTION 90VAC 120VAC 240VAC 05186.R2 2/07 1 www.protekdevices.
