PLC03-3.3-DFN

HIGH POWER LOW CAPACITANCE TVS ARRAY

Protek Devices

PLC03-3.3-DFN Features

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV

* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns

* Compatible with IEC 61000-4-5 (Surge): 94A, 8/20µs - Level 4(Line- Gnd), 48A, Level 1 (Power) & 48A, Level 4(Line-Line)

* 100A (2/10µs) per Bellc

PLC03-3.3-DFN General Description

The PLC03-3.3-DFN is a low capacitance, high powered TVS array available in a six lead DFN package. This device is designed to protect high speed data line applications from the damaging effects of ESD, EFT and secondary transient threats. The PLC03-3.3-DFN has a peak pulse power rating of 1800 Watt.

PLC03-3.3-DFN Datasheet (447.25 KB)

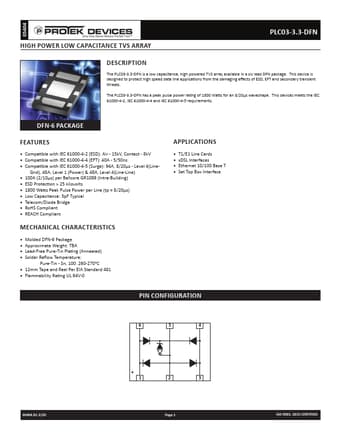

PLC03-3.3-DFN Datasheet Preview — Preview of PLC03-3.3-DFN PDF

Datasheet Details

Part number:

PLC03-3.3-DFN

Manufacturer:

Protek Devices

File Size:

447.25 KB

Description:

High power low capacitance tvs array.
