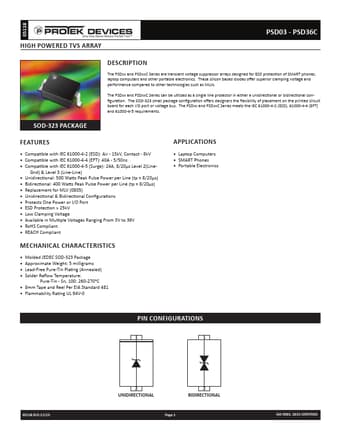

PSD03C Datasheet, Array, Protek Devices

PSD03C Features

• Array
• Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
• Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
• Compatible with IEC 61000-4-5 (Surge):

PDF File Details

Part number:

PSD03C

Manufacturer:

Protek Devices

File Size:

1.07MB

Download:

📄 Datasheet

Description:

High powered tvs array. The PSDxx and PSDxxC Series are transient voltage suppressor arrays designed for ESD protection of SMART phones, laptop computers and

PSD03C Application

• Applications
• Laptop Computers
• SMART Phones
• Portable Electronics PIN CONFIGURATIONS 11 05118.R15 11/13 2 UNIDIRE
