SMDA05-6 - 300 WATT MULTI-LINE TVS ARRAY

Download the SMDA05-6 datasheet PDF. This datasheet also covers the SMDA03-6 variant, as both devices belong to the same 300 watt multi-line tvs array family and are provided as variant models within a single manufacturer datasheet.

General Description

The SMDAxx-6 series are monolithic transient voltage suppressor arrays that provides board level protection for standard TTL and MOS bus line applications against the damaging effects of ESD, tertiary lightning and switching transients.

Key Features

  • Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV.
  • Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns.
  • Compatible with IEC 61000-4-5 (Surge): 12A, 8/20µs - Level 1(Line- Gnd) & Level 2(Line-Line).
  • 300 Watts Peak Pulse Power per Line (tp = 8/20µs).
  • Protects 6 Unidirectional Lines: Pins 1, 2, 3, 4, 5, 8 to Data Lines, Pins 6 & 7 to Ground.
  • Protects 5 Bidirectional Lines: Pins 1, 2, 3, 4 to Data Lines, Pins 5 or 8 to.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMDA03-6-ProTekDevices.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SMDA05-6
Manufacturer Protek Devices
File Size 304.23 KB
Description 300 WATT MULTI-LINE TVS ARRAY
Datasheet download datasheet SMDA05-6 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SMDA05-6 UNIDIRECTIONAL TVS DIODE ARRAY Leiditech
SMDA05-6 TVS ARRAY Sangdest Microelectronics
SMDA05-6 Unidirectional TVS Array Semtech Corporation
SMDA05-6 TVS Microsemi Corporation
SMDA05-6 TVS Micro Commercial Components

Other Datasheets by Protek Devices

Part Number Description
SMDA05 (SMDA03 - SMDA36C) STANDARD CAPACITANCE TVS ARRAY
SMDA05C (SMDA03 - SMDA36C) STANDARD CAPACITANCE TVS ARRAY
SMDA03 500 WATT MULTI-LINE TVS ARRAY
SMDA03-6 300 WATT MULTI-LINE TVS ARRAY
SMDA03C (SMDA03 - SMDA36C) STANDARD CAPACITANCE TVS ARRAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

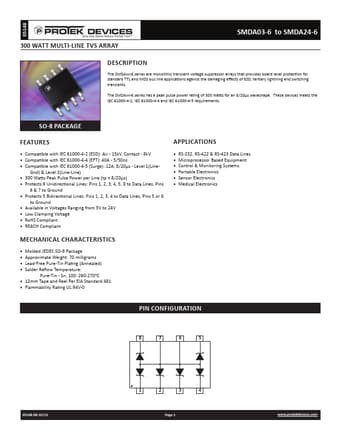

05148 Only One Name Means ProTek’Tion™ 300 WATT MULTI-LINE TVS ARRAY SMDA03-6 to SMDA24-6 Description The SMDAxx-6 series are monolithic transient voltage suppressor arrays that provides board level protection for standard TTL and MOS bus line applications against the damaging effects of ESD, tertiary lightning and switching transients. The SMDAxx-6 series has a peak pulse power rating of 300 Watts for an 8/20µs waveshape. These devices meets the IEC 61000-4-2, IEC 61000-4-4 and IEC 61000-4-5 requirements.
