TEL185E, TEL185B Datasheet - Protek Devices

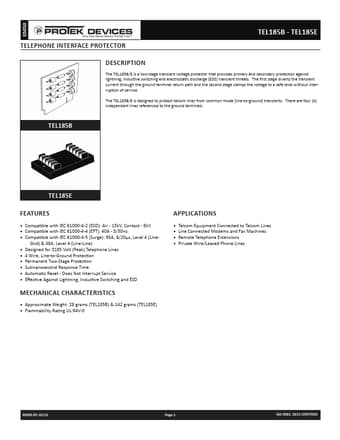

TEL185E - TELEPHONE INTERFACE PROTECTOR

The TEL185B/E is a two-stage transient voltage protector that provides primary and secondary protection against lightning, inductive switching and electrostatic discharge (ESD) transient threats.

The first stage diverts the transient current through the ground terminal return path and the second sta

TEL185E Features

* Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV

* Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns

* Compatible with IEC 61000-4-5 (Surge): 95A, 8/20µs, Level 4 (Line- Gnd) & 48A, Level 4 (Line-Line)

* Designed for ±185 Volt (Peak) Telephone Lines

TEL185B_ProtekDevices.pdf

This datasheet PDF includes multiple part numbers: TEL185E, TEL185B. Please refer to the document for exact specifications by model.
TEL185E Datasheet Preview Page 2 TEL185E Datasheet Preview Page 3

Datasheet Details

Part number:

TEL185E, TEL185B

Manufacturer:

Protek Devices

File Size:

335.04 KB

Description:

Telephone interface protector.

Note:

This datasheet PDF includes multiple part numbers: TEL185E, TEL185B.
Please refer to the document for exact specifications by model.
