PE-68532G (PE-6853xG) Fastpulse High Speed LAN Transceivers

The FASTPULSE high speed LAN transceivers provide high performance, cost-effective solutions for ATM 155 Mbps, TPFDDI and Fast Ethernet 100Base-TX frontends. The transceivers interface the standard “fiber” PECL interface to UTP-5 cable, integrating the transceiver IC, magnetics and connector in the .

( DataSheet : www.DataSheet4U.com ) FASTPULSE HIGH SPEED LAN TRANSCEIVERS High performance transceivers for ATM 155 Mbps, 100Base-TX, and TP-FDDI Integrated drop-in frontend solution Footprint compatible with popular LCF 9-pin Fiber Optic Transceivers Part Number Chart Part Number PE-68531G PE-68532G, PE-68538G PE-68537G Note: Also available without metallic case: use suffix “C”, eg. PE-68532C. Application TP-FDDI ATM 155 Mbps 100Base-TX Standard ANSI X3T12, TP-PMD ATM-UNI-PMD STS-3c IEEE 802.

PE-68532G Features

* s UTP Transceivers for ATM 155 Mbps, TP-FDDI and 100Base-TX s Drop in replacement for standard 9-pin fiber optic transceivers s Full compliance with PMD standards: ATM, ANSI and IEEE s Supports 100 m of Unshielded Twisted Pair, Category 5 cable s Implements full adaptive equalization and baseline wa

PE-68531G_PulseEngineering.pdf

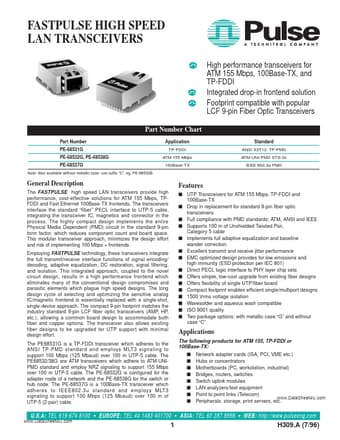

PE-68532G Datasheet Preview — This datasheet PDF includes multiple part numbers: PE-68532G, PE-68531G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PE-68532G, PE-68531G

Manufacturer:

Pulse Engineering

File Size:

258.47 KB

Description:

(pe-6853xg) fastpulse high speed lan transceivers.

Note:

This datasheet PDF includes multiple part numbers: PE-68532G, PE-68531G.
Please refer to the document for exact specifications by model.
