H544 - 1000Base-T Magnetics Modules Designed to Support Gigabit Transceivers

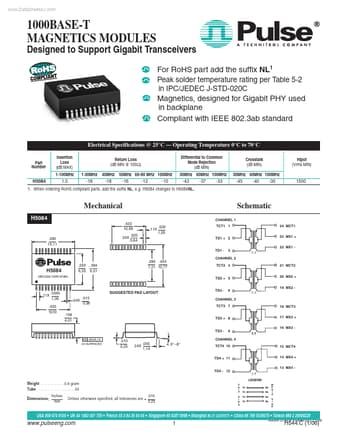

www.DataSheet4U.com 1000BASE-T MAGNETICS MODULES Designed to Support Gigabit Transceivers For RoHS part add the suffix NL1 Peak solder temperature rating per Table 5-2 in IPC/JEDEC J-STD-020C Magnetics, designed for Gigabit PHY used in backplane Compliant with IEEE 802.3ab standard Electrical Specifications @ 25°C Operating Temperature 0°C to 70°C Part Number H5084 Insertion Loss (dB MAX) 1-100MHz 1.0 1-30MHz -18 Return Loss (dB MIN @ 100Ω) 40MHz 50MHz 60-80 MHz 100MHz -18 -16 -12 -1.
