Description
TM
www.pulseeng.com

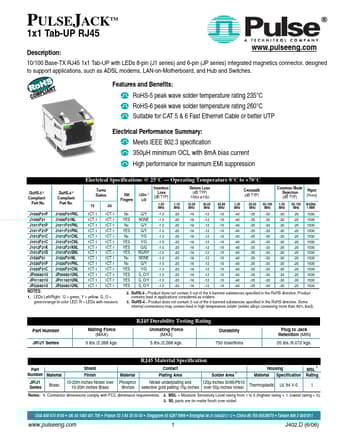

10/100 Base-TX RJ45 1x1 Tab-UP with LEDs 8-pin (J1 series) and 6-pin (JP series) integrated magnetics connector, designed to support applications, such as ADSL modems, LAN-on-Motherboard, and Hub and Switches.
Features
- RoHS-5 peak wave solder temperature rating 235°C RoHS-6 peak wave solder temperature rating 260°C Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP Electrical Performance Summary: Meets IEEE 802.3 specification 350µH minimum OCL with 8mA bias current High performance for maximum EMI suppression
Electrical Specifications @ 25°C.
- Operating Temperature 0°C to +70°C
RoHS-5 2 Compliant Part No. J1006F01P
www. DataSheet4U. com J1006F21
RoHS-6 3 Compliant Part No. J1006F01PNL J1006F21NL.
