PE-1210ACC110STS Datasheet - Pulse

PE-1210ACC110STS - Automotive Chip Choke EMI Suppression

Automotive Chip Choke® EMI Suppression for CAN-Bus Networks 2-Line Common Mode Chokes Part Number PE-1210ACCXXXSTS PE-1210ACC110STS PE-1210ACC220STS PE-1210ACC510STS PE-1210ACC101STS PE-1812ACCXXXSTS PE-1812ACC110STS PE-1812ACC220STS PE-1812ACC510STS PE-1812ACC101STS Common Mode Impedance (10MHZ) Min Typ 300 550 500 1100 1000 2600 2200 5100 300 600 600 1200 1500 3500 3000 7500 Meets AEC-Q200 Requirements Suppression of common mode noise without attenuating the signal Magnetically shielded ver.

PE-1210ACC110STS-Pulse.pdf

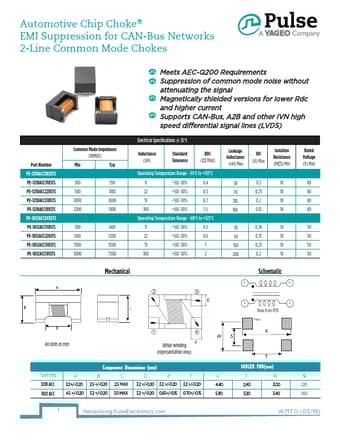

Preview of PE-1210ACC110STS PDF
PE-1210ACC110STS Datasheet Preview Page 2 PE-1210ACC110STS Datasheet Preview Page 3

Datasheet Details

Part number:

PE-1210ACC110STS

Manufacturer:

Pulse

File Size:

1.37 MB

Description:

Automotive chip choke emi suppression.
