PE-65857, PE-65554 Datasheet - Pulse

PE-65857 T1/E1/CEPT/ISDN-PRI TRANSFORMERS

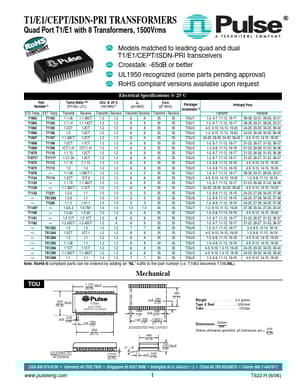

T1/E1/CEPT/ISDN-PRI TRANSFORMERS Quad Port T1/E1 with 8 Transformers, 1500Vrms Models matched to leading quad and dual T1/E1/CEPT/ISDN-PRI transceivers Crosstalk: -65dB or better UL1950 recognized (some parts pending approval) RoHS compliant versions available upon request Electrical Specifications @ 25°C Part Number G STD Temp. EXT Temp. T1063 T1103 Turns Ratio A,B (Pri:Sec ±2%) Transmit Receive 1:1.36 1:1.36CT OCL @ 25°C (mH MIN) F LL (µH MAX) CW/W (pF MAX) Package/ Schematic E Transm.

PE-65554-Pulse.pdf

This datasheet PDF includes multiple part numbers: PE-65857, PE-65554. Please refer to the document for exact specifications by model.
PE-65857 Datasheet Preview Page 2 PE-65857 Datasheet Preview Page 3

Datasheet Details

Part number:

PE-65857, PE-65554

Manufacturer:

Pulse

File Size:

194.31 KB

Description:

T1/e1/cept/isdn-pri transformers.

Note:

This datasheet PDF includes multiple part numbers: PE-65857, PE-65554.
Please refer to the document for exact specifications by model.
