PH9185.011NL - Switch Mode Transformers

This page provides the datasheet information for the PH9185.011NL, a member of the PH9185011NL Switch Mode Transformers family.

📥 Download Datasheet

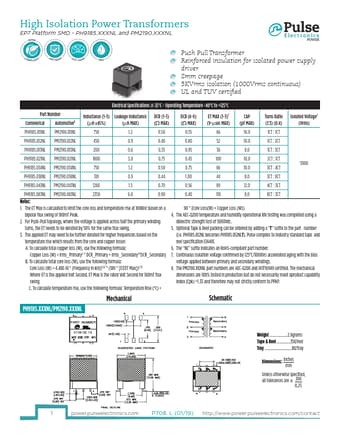

Datasheet preview – PH9185.011NL

Datasheet Details

Part number PH9185.011NL
Manufacturer Pulse
File Size 327.59 KB
Description Switch Mode Transformers
Datasheet download datasheet PH9185.011NL Datasheet
Additional preview pages of the PH9185.011NL datasheet.

📁 Similar Datasheet

  • PH9025L - N-channel TrenchMOS logic level FET (NXP Semiconductors)
  • PH9030L - N-channel TrenchMOS logic level FET (NXP Semiconductors)
  • PH955L - N-channel TrenchMOS logic level FET (NXP Semiconductors)
  • PH965C6 - SPECIFICATION (Fuji Electric)
  • PH967C6 - SPECIFICATION (ETC)
  • PH97005 - Low cost DECT Power Amplifier (NXP Semiconductors)
  • PH975C6 - SILICON DIODE (Fuji Electric)
  • PH9930L - N-channel TrenchMOS logic level FET (NXP Semiconductors)
Other Datasheets by Pulse

Full PDF Text Transcription

Click to expand full text
Switch Mode Transformers EP7 Platform SMD Push Pull Converter Transformer Reinforced insulation for isolated power supply driver Compatible with MAXIM™ MAX253 to power RS-485/RS232 transceiver 8mm creepage, 4000V Hi-pot UL and TUV certification UL class F insulation System compliant Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C Part 2, 3 Number PH9185.011NL PH9185.012NL PH9185.013NL PH9185.021NL PH9185.034NL PH9185.038NL PH9185.043NL PH9185.083NL Inductance (1-3) (µH ±45%) 750.0 450.0 200.0 880.0 750.0 310.0 1260.0 560.0 DCR (1-3) (Ω MAX) 0.50 0.40 0.35 0.56 0.50 0.35 0.70 0.45 MAX (1-3) 1 (V-µsec) 66.0 52.0 36.0 74.0 66.0 44.0 89.0 59.0 www.DataSheet.net/ 4 Turns Ratio 1:1 1:2 1:3 2:1 3:4 3:8 4:3 8:3 Isolated Voltage (Vrms) 4000.0 Notes: 1.
