TX1264NL Datasheet - Pulse

TX1264NL T1/E1/CEPT/ISDN-PRI TRANSFORMERS

T1/E1/CEPT/ISDN-PRI TRANSFORMERS Quad Port T1/E1 with 8 Transformers, 1500 Vrms RoHS peak reflow temperature rating 245 C Models matched to leading quad and dual T1/ E1/CEPT/ISDN-PRI transceivers Crosstalk: -65 dB or better UL1950 recognized (some parts pending approval) RoHS compliant versions available upon request RoHS Compliant Part Number Turns Ratio (Pri:Sec ±2%) OCL @ 25 C (mH MIN) Std Temp. Ex Temp TX RX TX T1064NL - 1:1.14 1:1.14CT 1.2 T1065NL T1105NL 1:2CT 1:2CT 1.2 T10.

TX1264NL Datasheet (687.22 KB)

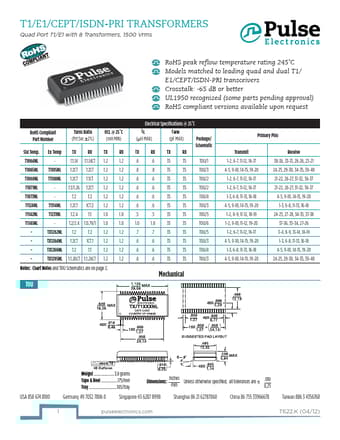

Preview of TX1264NL PDF

Datasheet Details

Part number:

TX1264NL

Manufacturer:

Pulse

File Size:

687.22 KB

Description:

T1/e1/cept/isdn-pri transformers.
