P2781 - General Purpose EMI Reduction IC

Product Overview

Datasheet Details

Part number	P2781
Manufacturer	PulseCore Semiconductor
File Size	210.17 KB
Description	General Purpose EMI Reduction IC
Datasheet	P2781 Datasheet

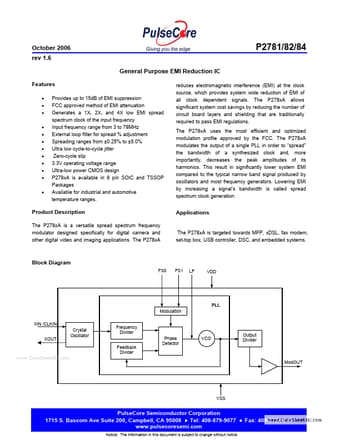

Additional preview pages of the P2781 datasheet.

Product details

Description

The P278xA is a versatile spread spectrum frequency modulator designed specifically for digital camera and other digital video and imaging applications.

Features

Provides up to 15dB of EMI suppression FCC approved method of EMI attenuation Generates a 1X, 2X, and 4X low EMI spread spectrum clock of the input frequency Input frequency range from 3 to 78MHz External loop filter for spread % adjustment Spreading ranges from ±0.25% to ±5.0% Ultra low cycle-to-cycle jitter Zero-cycle slip 3.3V operating voltage range Ultra-low power CMOS des.
