ANDPSI056ET0S-HB-KIT Analog RGB Interface

Displays ANDpSi056ET0S-HB-KIT Analog RGB Interface www.datasheet4u.com The ANDpSi056ET0S-HB-KIT is a 100% Plug in Play LCD controller board with VESA standard RGB 8 bit supports. It utilizes poly-silicon (psi) technology to provide a brighter, thinner and lighter display with high-resolution and measures only 4.25” x 4.0” x 0.35.” LCD Display Supports: One LVDS / Two LVDS support Supports VGA, SVGA, XGA, SXGA Panel interface TTL 12bit.

ANDPSI056ET0S-HB-KIT Features

* VESA standard Analog RGB 8 bit supports

* VGA (640 x 480) @60Hz, 70Hz, 75Hz

* SVGA (800 x 600) @ 60Hz, 70Hz, 75Hz

* XGA (1024 x 768) @60Hz, 70Hz, 75Hz

* SXGA (1280 x 1024) @60Hz, 70Hz, 75Hz

* Scaling engine ST Micro ADE3700

* On board LVDS inter

ANDPSI056ET0S-HB-KIT_PurdyElectronicsCorporation.pdf

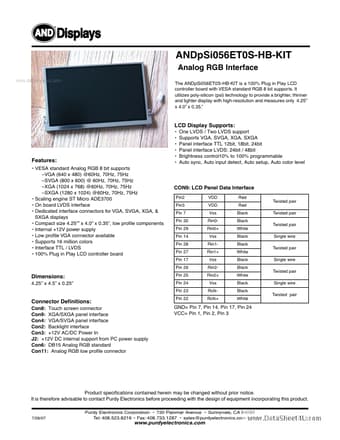

Preview of ANDPSI056ET0S-HB-KIT PDF
