AND2307 - LED Displays

Product Overview

Purdy Electronics

Datasheet Details

Part number	AND2307
Manufacturer	Purdy Electronics
File Size	77.51 KB
Description	LED Displays
Datasheet	AND2307 Datasheet

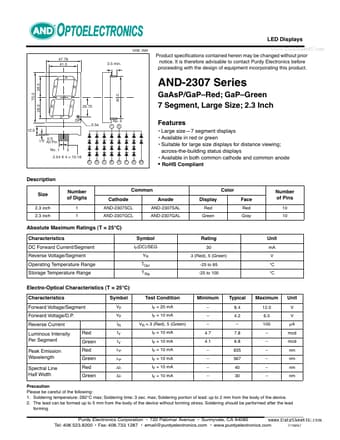

Additional preview pages of the AND2307 datasheet.

Product details

Description

Size 2.3 inch 2.3 inch Number of Digits 1 1 Common Cathode AND-2307SCL AND-2307GCL Color Anode Display Red Green Face Red Gray Number of Pins 10 10 AND-2307SAL AND-2307GAL Absolute Maximum Ratings (T = 25°C) Characteristics DC Forward Current/Segment Reverse Voltage/Segment Operating Temperature Range Storage Temperature Range Symbol IF(DC)/SEG VR TOpr TStg Rating 30 3 (Red), 5 (Green) -25 to 85 -25 to 100 Unit mA V °C °C Electro-Optical Characteristics (T = 25°C) Characteristics Forwa

Features

Large size.
7 segment displays.
Available in red or green.
Suitable for large size displays for distance viewing; across-the-building status displays.
Available in both common cathode and common anode.
RoHS Compliant 70.0 No. 5 5 2.54 X 4 = 10.16.
