P24C32C I2C-Compatible Serial E2PROM

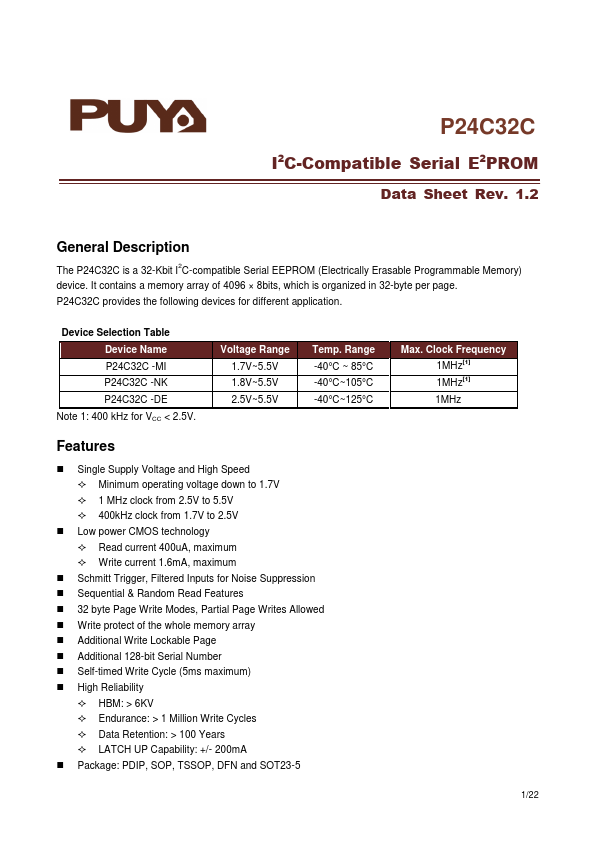

The P24C32C is a 32-Kbit I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 4096 × 8bits, which is organized in 32-byte per page. P24C32C provides the following devices for different application. Device Selection Table Device Name P24C32C .

P24C32C Features

* Single Supply Voltage and High Speed

* Minimum operating voltage down to 1.7V

* 1 MHz clock from 2.5V to 5.5V

* 400kHz clock from 1.7V to 2.5V

* Low power CMOS technology

* Read current 400uA, maximum

* Write current 1.6mA, maximum

* Schmitt Trigger, Filtered Inputs

P24C32C Datasheet (670.59 KB)

P24C32C Datasheet Preview — Preview of P24C32C PDF

Datasheet Details

Part number:

P24C32C

Manufacturer:

Puya

File Size:

670.59 KB

Description:

I2c-compatible serial e2prom.
