P25C64F - 64-Kbit Serial SPI bus EEPROM

Puya

📥 Download Datasheet

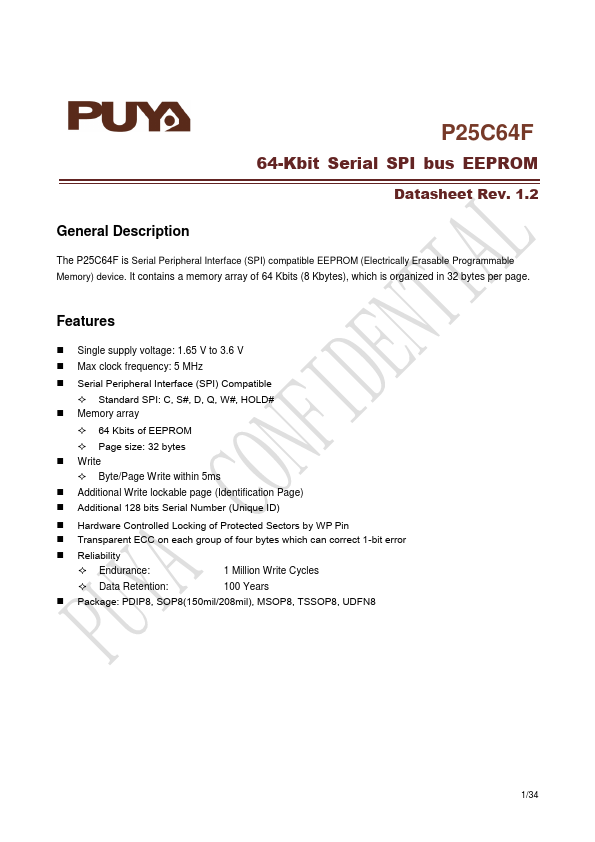

P25C64F Datasheet Preview — Preview of P25C64F PDF

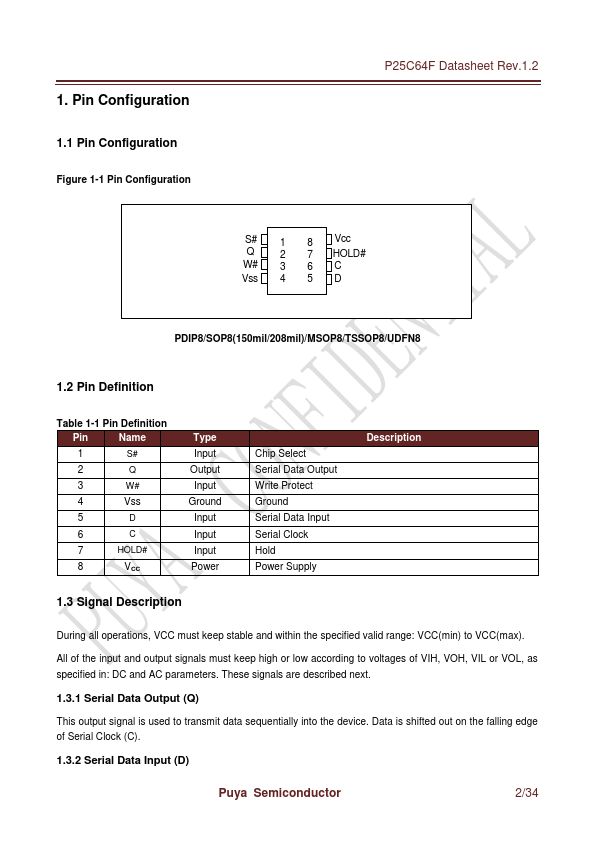

datasheet Preview Page 2

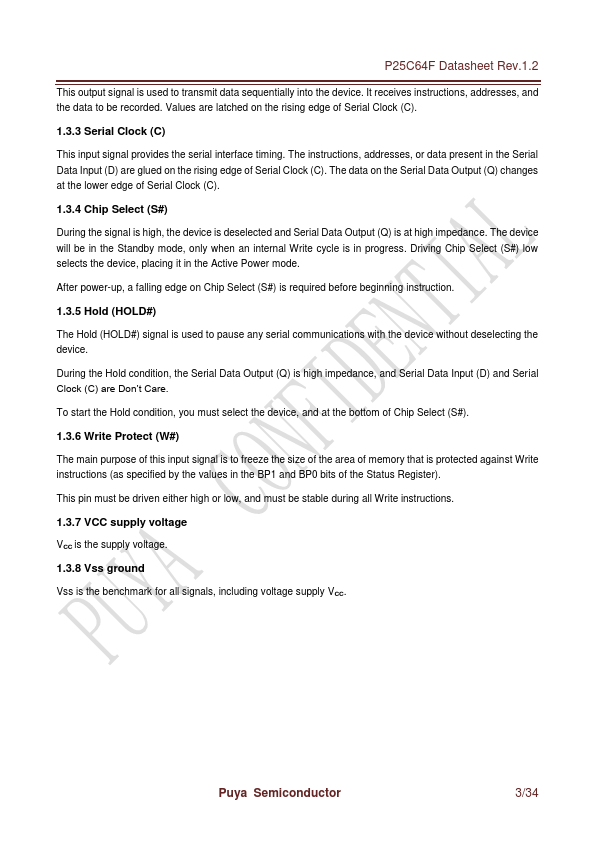

datasheet Preview Page 3

Datasheet Details

Part number	P25C64F
Manufacturer	Puya
File Size	1.31 MB
Description	64-Kbit Serial SPI bus EEPROM
Datasheet	P25C64F-Puya.pdf

P25C64F Product details

Description

The P25C64F is Serial Peripheral Interface (SPI) compatible EEPROM (Electrically Erasable Programmable Memory) device.

Features

Single supply voltage: 1.65 V to 3.6 V.
Max clock frequency: 5 MHz.
Serial Peripheral Interface (SPI) Compatible.
Standard SPI: C, S#, D, Q, W#, HOLD#.
Memory array.
64 Kbits of EEPROM.
Page size: 32 bytes.
Write.
Byte/Page Write within 5ms.
Additional Write lockable page (Identification Page).
Additional 128 bits Serial Number (Unique ID).
Hardware Controlled Locking of Protected Sectors by WP Pin.
Transparent ECC on ea.
