P25CM02F - 2-Mbit Serial SPI bus EEPROM

Puya

📥 Download Datasheet

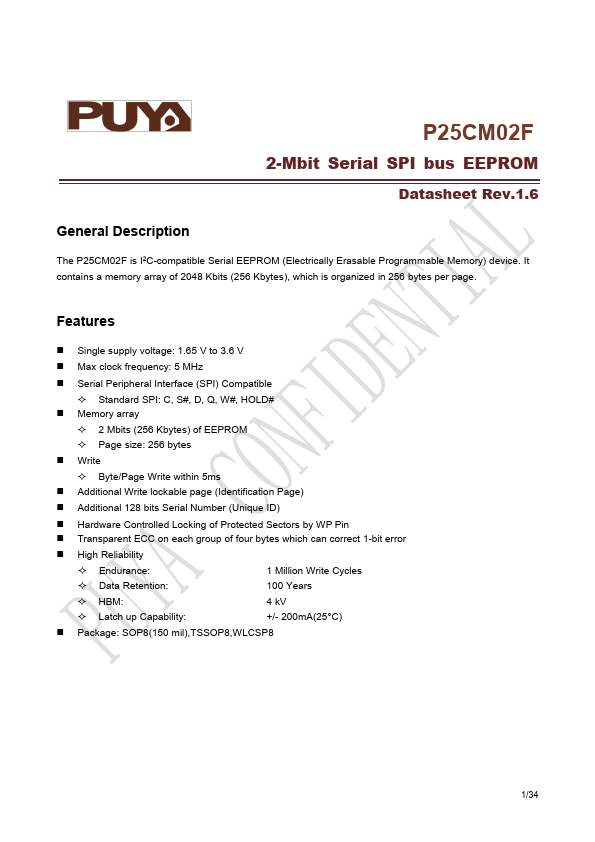

P25CM02F Datasheet Preview — Preview of P25CM02F PDF

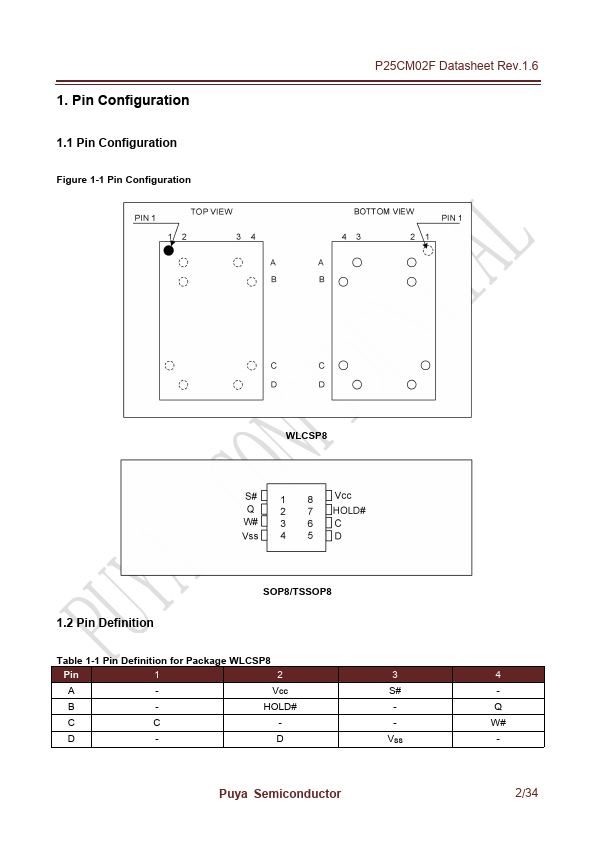

datasheet Preview Page 2

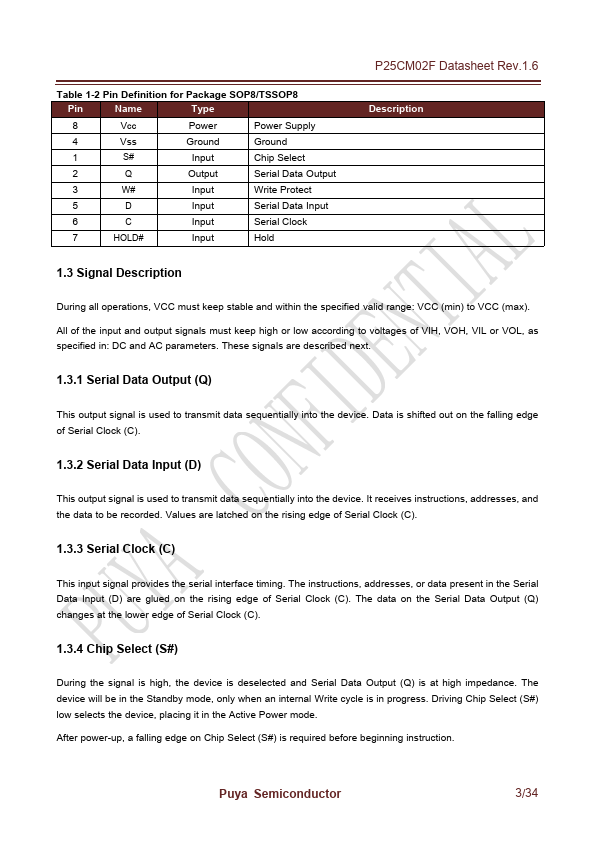

datasheet Preview Page 3

Datasheet Details

Part number	P25CM02F
Manufacturer	Puya
File Size	2.60 MB
Description	2-Mbit Serial SPI bus EEPROM
Datasheet	P25CM02F-Puya.pdf

P25CM02F Product details

Description

The P25CM02F is I2C-compatible Serial EEPROM (Electrically Erasable Programmable Memory) device.

Features

Single supply voltage: 1.65 V to 3.6 V.
Max clock frequency: 5 MHz.
Serial Peripheral Interface (SPI) Compatible.
Standard SPI: C, S#, D, Q, W#, HOLD#.
Memory array.
2 Mbits (256 Kbytes) of EEPROM.
Page size: 256 bytes.
Write.
Byte/Page Write within 5ms.
Additional Write lockable page (Identification Page).
Additional 128 bits Serial Number (Unique ID).
Hardware Controlled Locking of Protected Sectors by WP Pin.
Transpa.
