P4248 Datasheet - Puya

Low Power Hall-effect sensor

P4248 Features

* High sensitivity: BOP=+/-30 Gauss, BRP=+/-20Gauss

* 1.8~5.5V operating supply voltage

* 5uA operating current at 1.8V

* Ambient temp range:-40C~85C

* >4KV ESD capability

* Push-pull output

* RoHS compliant 2011/65/EU and Halogen Free

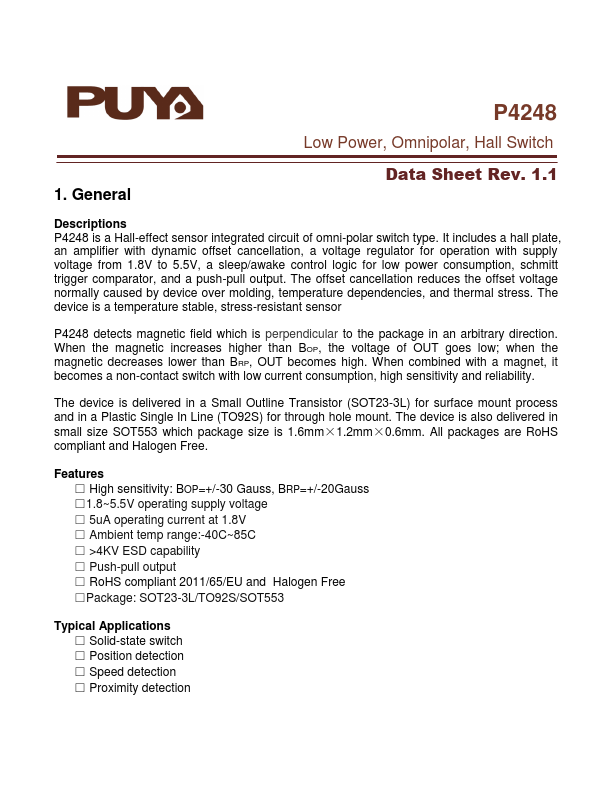

P4248 General Description

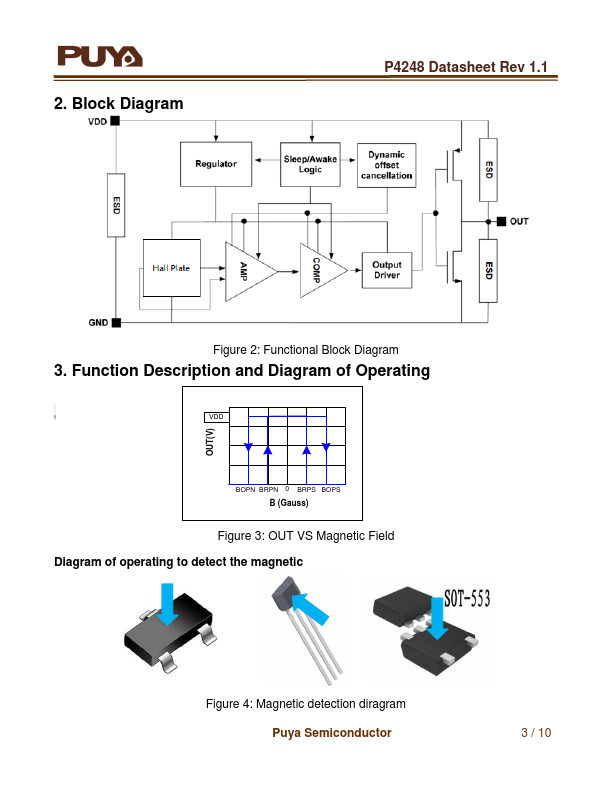

P4248 is a Hall-effect sensor integrated circuit of omni-polar switch type. It includes a hall plate, an amplifier with dynamic offset cancellation, a voltage regulator for operation with supply voltage from 1.8V to 5.5V, a sleep/awake control logic for low power consumption, schmitt trigger compar.

P4248 Datasheet (489.93 KB)

P4248 Datasheet Preview — Preview of P4248 PDF

Datasheet Details

Part number:

P4248

Manufacturer:

Puya

File Size:

489.93 KB

Description:

Low power hall-effect sensor.
