QLF063A-P120 - 660 nm 120mW FP LASER TO-CAN

Datasheet Summary

Description

The QLF063A-P120 is a 660 nm quantum well laser device designed for high output power application.

The laser diode is mounted into a TO-56 header including a monitor PD and hermetic sealed with a flat glass cap.

Features

660 nm FP-LD.
5.6mm TO-CAN package.
High output power of 120mW and high slope efficiency.
Including monitor PD.
Two types of pin assignments: anode common type (QLF063A-P120)/cathode common type (QLF063D-P120) 3.

QD Laser

📥 Download Datasheet

Datasheet Details

Part number	QLF063A-P120
Manufacturer	QD Laser
File Size	248.44 KB
Description	660 nm 120mW FP LASER TO-CAN
Datasheet	QLF063A-P120 Datasheet
Additional preview pages of the QLF063A-P120 datasheet.

📁 Similar Datasheet

Other Datasheets by QD Laser

QLF063A-4030T50 - 640 nm 30mW FP LASER TO-CAN
QLF063A-AA - 660 nm 50mW FP LASER TO-CAN
QLF063A - 660 nm 100mW FP LASER TO-CAN
QLF063D - 660 nm 100mW FP LASER TO-CAN
QLF063D-AA - 660 nm 50mW FP LASER TO-CAN
QLF063D-P120 - 660 nm 120mW FP LASER TO-CAN
QLF073A - 785 nm FP LASER TO-CAN
QLF073D - 785 nm FP LASER TO-CAN

Full PDF Text Transcription

Click to expand full text

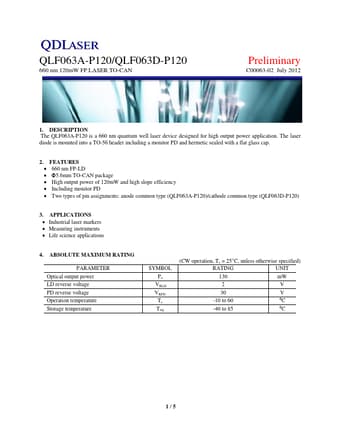

QLF063A-P120/QLF063D-P120 660 nm 120mW FP LASER TO-CAN Preliminary C00063-02 July 2012 1. DESCRIPTION The QLF063A-P120 is a 660 nm quantum well laser device designed for high output power application. The laser diode is mounted into a TO-56 header including a monitor PD and hermetic sealed with a flat glass cap. 2. FEATURES  660 nm FP-LD  5.6mm TO-CAN package  High output power of 120mW and high slope efficiency  Including monitor PD  Two types of pin assignments: anode common type (QLF063A-P120)/cathode common type (QLF063D-P120) 3.    APPLICATIONS Industrial laser markers Measuring instruments Life science applications 4.

Published: Nov 4, 2014 |
