QLF063D-P120, QLF063A-P120, 660 nm 120mW FP LASER TO-CAN

QLF063A-P120/QLF063D-P120 660 nm 120mW FP LASER TO-CAN Preliminary C00063-02 July 2012 1..
The QLF063A-P120 is a 660 nm quantum well laser device designed for high output power application.

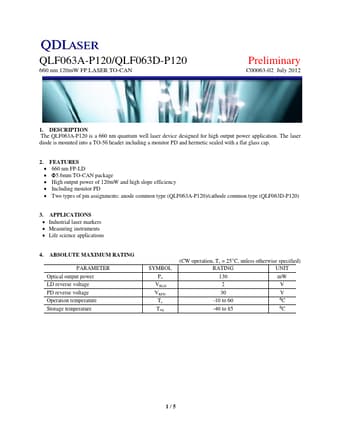

datasheet Preview Page 1 from Datasheet4u.com

QLF063A-P120-QDLaser.pdf

QLF063D-P120 Datasheet Preview — This datasheet PDF includes multiple part numbers: QLF063D-P120, QLF063A-P120. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

QLF063D-P120, QLF063A-P120

Manufacturer:

QD Laser

File Size:

248.44 KB

Description:

660 nm 120mW FP LASER TO-CAN

Note:

This datasheet PDF includes multiple part numbers: QLF063D-P120, QLF063A-P120.
Please refer to the document for exact specifications by model.

Features

* 660 nm FP-LD
* 5.6mm TO-CAN package
* High output power of 120mW and high slope efficiency
* Including monitor PD
* Two types of pin assignments: anode common type (QLF063A-P120)/cathode common type (QLF063D-P120) 3.

Applications

* Industrial laser markers Measuring instruments Life science applications 4. ABSOLUTE MAXIMUM RATING PARAMETER Optical output power LD reverse voltage PD reverse voltage Operation temperature Storage temperature SYMBOL Po VRLD VRPD Tc Tstg (CW operation, Tc = 25°C, unless otherwise specified) RATIN
