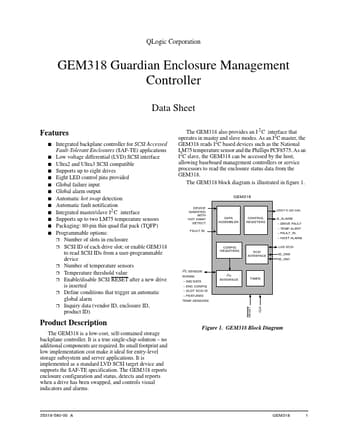

GEM318 Guardian Enclosure Management Controller

The GEM318 is a low-cost, self-contained storage backplane controller. It is a true single-chip solution * no additional components are required. Its small footprint and low implementation cost make it ideal for entry-level storage subsystem and server applications. It is implemented as a st.

GEM318 Features

* s Integrated backplane controller for SCSI Accessed Fault-Tolerant Enclosures (SAF-TE) applications s Low voltage differential (LVD) SCSI interface s Ultra2 and Ultra3 SCSI compatible s Supports up to eight drives s Eight LED control pins provided s Global failure input s Global alarm output s Autom
