QED122 PLASTIC INFRARED LIGHT EMITTING DIODE

QED122 Description

QED121/122/123 PLASTIC INFRARED LIGHT EMITTING DIODE PACKAGE DIMENSIONS 0.195 (4.95) .

QED122 Features

* != 880 nm REFERENCE SURFACE 0.305 (7.75)
* Chip material = AlGaAs
* Package type: T-1 3/4 (5mm lens diameter)
* Matched Photosensor: QSD122/123/124 0.040 (1.02) NOM 0.800 (20.3) MIN
* Narrow Emission Angle, 18°
* High Output Power
* Packag

📥 Download Datasheet

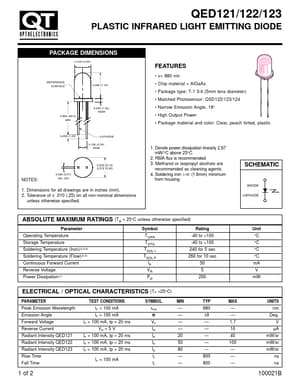

Preview of QED122 PDF
datasheet Preview Page 2

Datasheet Details

Part number
QED122
Manufacturer
QT Optoelectronics
File Size
86.81 KB
Datasheet
QED122_QTOptoelectronics.pdf
Description
PLASTIC INFRARED LIGHT EMITTING DIODE
