QT110H, QT110 Datasheet - QUANTUM

QT110H SENSOR ICs

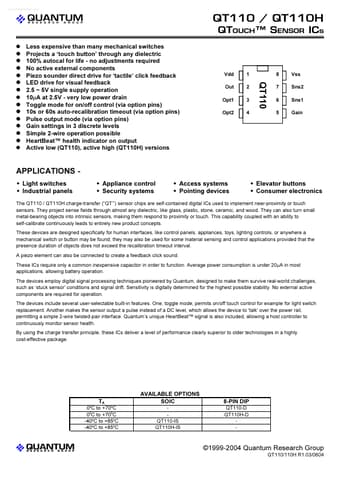

www.DataSheet4U.com lQ Less expensive than many mechanical switches Projects a ‘touch button’ through any dielectric 100% autocal for life - no adjustments required No active external components Piezo sounder direct drive for ‘tactile’ click feedback LED drive for visual feedback 2.5 ~ 5V single supply operation 10µA at 2.5V - very low power drain Toggle mode for on/off control (via option pins) 10s or 60s auto-recalibration timeout (via option pins) Pulse output mode (via option pins) Gain set.

QT110H Features

* One, toggle mode, permits on/off touch control for example for light switch replacement. Another makes the sensor output a pulse instead of a DC level, which allows the device to 'talk' over the power rail, permitting a simple 2-wire twisted-pair interface. Quantum’s unique HeartBeat™ signal is als

QT110_QUANTUM.pdf
