QX7135 Datasheet, Driver, QXMD

QX7135 Features

  • Driver y Sink current: 100mA to 400mA with 10mA step. y Power supply voltage: 2.7-6V y Low drop out voltage: 150mV@350mA y Low quiescent current: 250uA y Thermal protection y Soft start y Low

PDF File Details

Part number:

QX7135

Manufacturer:

QXMD

File Size:

174.97kb

Download:

📄 Datasheet

Description:

Constant current led driver. THE QX7135 is a constant current regulator for driving LEDs with low quiescent current and low dropout voltage. The current ranges fr

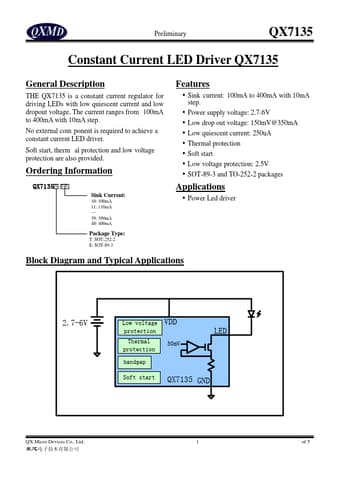

Datasheet Preview: QX7135 📥 Download PDF (174.97kb)
Page 2 of QX7135 Page 3 of QX7135

QX7135 Application

  • Applications Sink Current: 10: 100mA 11: 110mA … 39: 390mA 40: 400mA y Power Led driver Package Type: T: SOT-252-2 E: SOT-89-3 Block Diagram and
