TIC116M Datasheet - Qidong Jilai

TIC116M 8A SCR

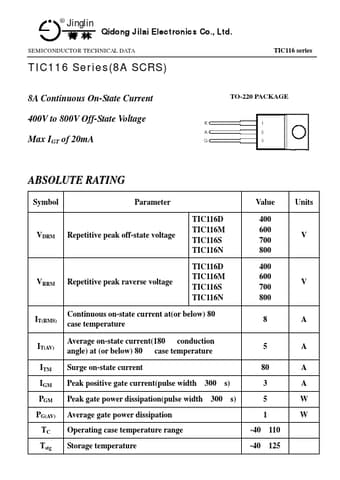

® Jinglin Qidong Jilai Electronics Co., Ltd. SEMICONDUCTOR TECHNICAL DATA TIC116 Series(8A SCRS) TIC116 series 8A Continuous On-State Current 400V to 800V Off-State Voltage Max IGT of 20mA TO-220 PACKAGE ABSOLUTE RATING Symbol Parameter VDRM Repetitive peak off-state voltage TIC116D TIC116M TIC116S TIC116N VRRM Repetitive peak raverse voltage TIC116D TIC116M TIC116S TIC116N Continuous on-state current at(or below) 80 IT(RMS) case temperature Average on-state current(180 conduction IT.

TIC116M Datasheet (29.77 KB)

TIC116M Datasheet Preview — Preview of TIC116M PDF

Datasheet Details

Part number:

TIC116M

Manufacturer:

Qidong Jilai

File Size:

29.77 KB

Description:

8a scr.
