Description

The Qimonda 1-Gbit GDDR3 Graphics RAM is a high speed memory device, designed for high bandwidth intensive applications like PC graphics systems.

The chip is programmable into two different configurations.

Features

tWR programmable for Writes with Auto-Precharge.
Data mask for write commands.
Single ended READ strobe (RDQS) per byte. RDQS edgealigned with READ data.
Single ended WRITE strobe (WDQS) per byte. WDQS center-aligned with WRITE data.
DLL aligns RDQS and DQ transitions with Clock.
Programmable IO interface including on chip termination (ODT).
Autoprecharge option with concurrent auto precharge support.
8k Refresh (32ms).

Datasheet Details

Part number	HYB18H1G321AF-10
Manufacturer	Qimonda AG
File Size	2.27 MB
Description	GDDR3 Graphics RAM 1-Gbit GDDR3 Graphics RAM
Datasheet	HYB18H1G321AF-10 Datasheet
Additional preview pages of the HYB18H1G321AF-10 datasheet.

📁 Similar Datasheet

HYB18H256321AF-12 - 256-Mbit x32 GDDR3 DRAM (Infineon)

HYB18H256321AF-14 - 256-Mbit x32 GDDR3 DRAM (Infineon)

HYB18H256321AF-16 - 256-Mbit x32 GDDR3 DRAM (Infineon)

HYB18H256321AFL14 - 256-Mbit x32 GDDR3 DRAM (Infineon)

HYB18H256321AFL16 - 256-Mbit x32 GDDR3 DRAM (Infineon)

HYB18H256321AFL20 - 256-Mbit x32 GDDR3 DRAM (Infineon)

HYB18H512321AF-12 - 512-Mbit GDDR3 Graphics RAM (Infineon)

HYB18H512321AF-14 - 512-Mbit GDDR3 Graphics RAM (Infineon)

HYB18H512321AF-16 - 512-Mbit GDDR3 Graphics RAM (Infineon)

HYB18H512321AF-20 - 512-Mbit GDDR3 Graphics RAM (Infineon)

Full PDF Text Transcription

Click to expand full text

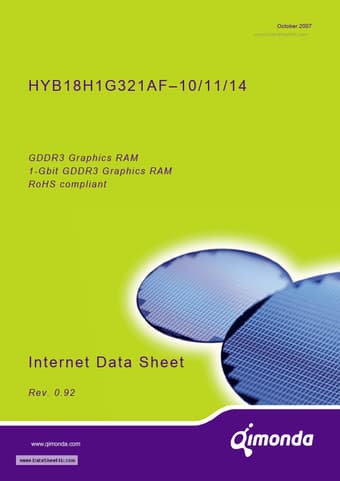

October 2007 www.DataSheet4U.com HYB18H1G321AF–10/11/14 GDDR3 Graphics RAM 1-Gbit GDDR3 Graphics RAM RoHS compliant Internet Data Sheet Rev. 0.92 Internet Data Sheet www.DataSheet4U.com HYB18H1G321AF–10/11/14 1-Gbit GDDR3 HYB18H1G321AF–10/11/14 Revision History: 2007-10, Rev. 0.92 Page All 39 36 All All Subjects (major changes since last revision) tWR changed from 14 to 13 tRP at Speed Bin -10 is changed from 13 to 14 IDD Values were added. Typo changes. Adapted internet editition Previous Revision: Rev. 0.91, 2007-08-08 Previous Revision: Rev. 0.80, 2007-07-10 We Listen to Your Comments Any information within this document that you feel is wrong, unclear or missing at all? Your feedback will help us to continuously improve the quality of this document.
