HYS64T128020EDL-3-C

The HYS64T128020EDL-3-C is 200-Pin SO-DIMM DDR2 SDRAM Modules designed by Qimonda AG.

Product Overview

Qimonda AG

Part number	HYS64T128020EDL-3-C, HYS64T256020EDL-25F-C
Manufacturer	Qimonda AG
File Size	2.94 MB
Description	200-Pin SO-DIMM DDR2 SDRAM Modules
Datasheet	HYS64T256020EDL-25F-C_QimondaAG.pdf
Note	This datasheet PDF includes multiple part numbers: HYS64T128020EDL-3-C, HYS64T256020EDL-25F-C. Please refer to the document for exact specifications by model.

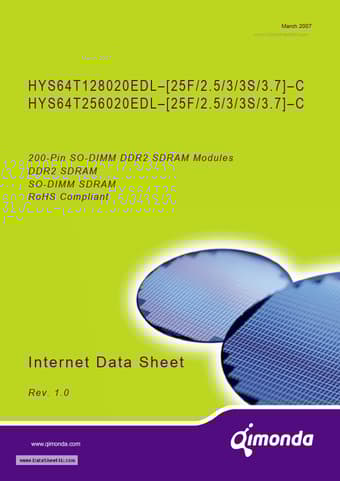

Additional preview pages of the HYS64T128020EDL-3-C datasheet.

The memory array is designed with 1-Gbit Double-Data-RateTwo (DDR2) Synchronous DRAMs.

Auto Refresh for temperatures above 85 °C tREFI = 3.9 µs. Programmable self refresh rate via EMRS2 setting. Programmable partial array refresh via EMRS2 settings. DCC enabling via EMRS2 setting. All inputs and outputs SSTL_1.8 compatible Off-Chip Driver Impedance Adjustment (OCD) and On-Die Termination (ODT) Serial Presence Detect with E2PROM SO-DIMM Dimensions (nominal): 30 mm high, 67.6 mm wide.
