ACT88320 - Advanced PMU

Product Overview

Qorvo

📥 Download Datasheet

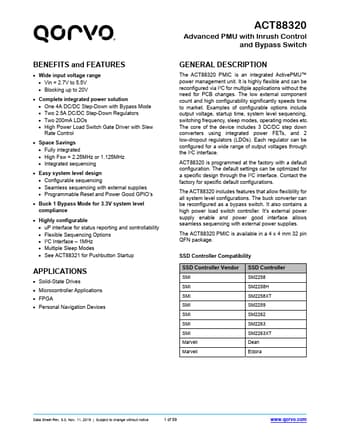

ACT88320 Advanced PMU by Qorvo - Datasheet Preview — Datasheet preview – ACT88320

Datasheet Details

Part number	ACT88320
Manufacturer	Qorvo
File Size	3.57 MB
Description	Advanced PMU
Datasheet	ACT88320 Datasheet
Additional preview pages of the ACT88320 datasheet.

Product details

Description

The ACT88320 PMIC is an integrated ActivePMU™ power management unit.

Features

Wide input voltage range.
Vin = 2.7V to 5.5V.
Blocking up to 20V.
Complete integrated power solution.
One 4A DC/DC Step-Down with Bypass Mode.
Two 2.5A DC/DC Step-Down Regulators.
Two 200mA LDOs.
High Power Load Switch Gate Driver with Slew Rate Control.
Space Savings.
Fully integrated.
High Fsw = 2.25MHz or 1.125MHz.
Integrated sequencing.
Easy system level design.
Configurable sequencing.
Seamless sequencing with exter.
