PAC22140 - 10S-20S Intelligent BMS

Datasheet Summary

Features

  • MCU.
  • 50MHz Arm® Cortex®-M0 o 32kB FLASH o 8kB SRAM o 256B INFO FLASH for manufacturing information o 20 interrupts, 4 priority levels.
  • SWD programming interface.
  • Clock-gating for low-power operation MCU ADC.
  • 10-bit 1MSPS SAR ADC.
  • Dual 8-channel ADC sequencer Timing Generators.
  • Four 16-bit PWM timers with up to 8 CCR output units each.
  • 24-bit SysTick count-down timer.
  • Watch-dog Timer (WDT).
  • AFE Windowed Watch-dog Timer (WWDT) running off independent c.

📥 Download Datasheet

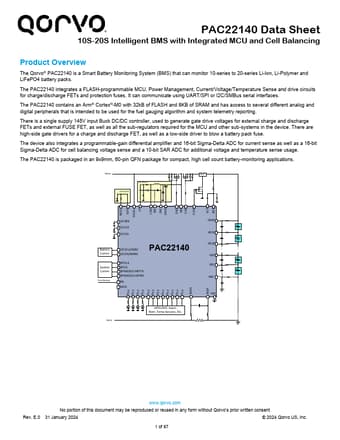

Datasheet preview – PAC22140

Datasheet Details

Part number PAC22140
Manufacturer Qorvo
File Size 1.81 MB
Description 10S-20S Intelligent BMS
Datasheet download datasheet PAC22140 Datasheet
Additional preview pages of the PAC22140 datasheet.
