QPC0542 SOI SPDT Switch

0.02 * 50 GHz SOI SPDT Switch 500 Piece 7” Reel 100 Piece 7” Reel QPC0542 Evaluation Board Data Sheet Rev. A, Oct 26, 2023 | Subject to change without notice 1 of 17 www.qorvo.com QPC0542 ® 0.02-50 GHz SOI SPDT Switch Absolute Maximum Ratings Parameter Supply Voltage (VDD) Negative S.

QPC0542 ® 0.02-50 GHz SOI SPDT Switch Product Overview Qorvo’s QPC0542 is an ultra-wide band SOI Single-Pole, Double Throw (SPDT) reflective switch. Operating from 0.02 to 50GHz, the QPC0542 typically supports up to 1W input power handling at control voltages of 0/+3 V. This switch maintains low insertion loss of 2 dB or less and greater than 40 dB isolation at 40 GHz, making it ideal for high isolation switching applications across both defense and commercial platforms. The QPC0542 i.

QPC0542 Features

* Frequency Range: 0.02

* 50 GHz

* Insertion Loss: < 2 dB typical @ 40 GHz

* Power Handling: ≤1W

* Isolation: 40 dB typical @ 40 GHz

* Return Loss: > 15 dB

* Control Voltages: +0/3 V

* Switching Time: < 50 ns

* RF Settling Time:

QPC0542 Datasheet (1.49 MB)

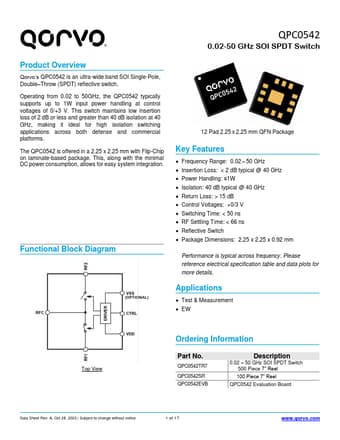

QPC0542 Datasheet Preview — Preview of QPC0542 PDF

Datasheet Details

Part number:

QPC0542

Manufacturer:

Qorvo

File Size:

1.49 MB

Description:

Soi spdt switch.
