Q2-F - HEAT SHRINK THIN WALL TUBING

📥 Download Datasheet

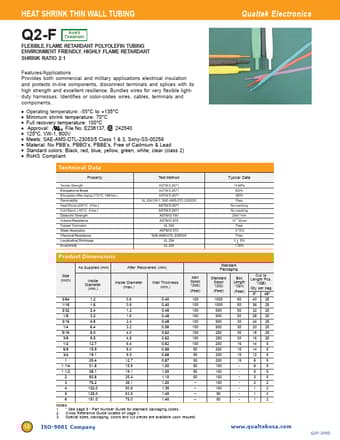

Datasheet preview – Q2-F

Datasheet Details

Part number Q2-F
Manufacturer Qualtek Electronics
File Size 520.09 KB
Description HEAT SHRINK THIN WALL TUBING
Datasheet download datasheet Q2-F Datasheet
Additional preview pages of the Q2-F datasheet.

📁 Similar Datasheet

Other Datasheets by Qualtek Electronics
  • Q2-F3X - HIGHLY FLEXIBLE FLAME RETARDANT POLYOLEFIN TUBING

Full PDF Text Transcription

Click to expand full text
HEAT SHRINK THIN WALL TUBING Qualtek Electronics Q2-F FLEXIBLE, FLAME RETARDANT POLYOLEFIN TUBING ENVIRONMENT FRIENDLY, HIGHLY FLAME RETARDANT SHRINK RATIO 2:1 Features/Applications Provides both commercial and military applications electrical insulation and protects in-line components, disconnect terminals and splices with its high strength and excellent resilience. Bundles wires for very flexible lightwww.DataSheet4U.net duty harnesses. Identifies or color-codes wires, cables, terminals and components. Operating temperature: -55°C to +135°C Minimum shrink temperature: 70°C Full recovery temperature: 100°C Approval: File No.
