QT511-ISSG QWHEEL TOUCH SLIDER IC

PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 NAME VDD SDO /SS SCLK SNS3B SNS3A SNS2B SNS2A SNS1B SNS1A SDI DETECT DRDY VSS TYPE Power O I I I/O I/O I/O I/O I/O I/O I O O Ground DESCRIPTION Positive power pin (+2.5 .. +5V) Serial data output Slave Select pin. This is an active low input that enables seri.

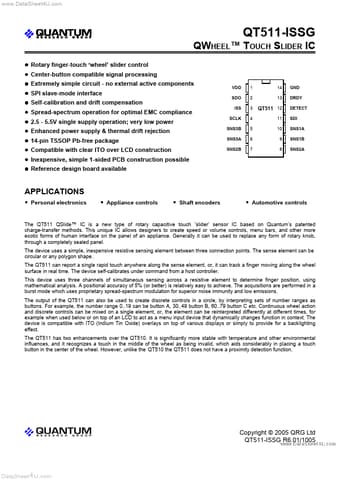

www.DataSheet4U.com LQ QT511-ISSG QWHEEL™ TOUCH SLIDER IC z Rotary finger-touch ‘wheel’ slider control z Center-button compatible signal processing z Extremely simple circuit - no external active components z SPI slave-mode interface z Self-calibration and drift compensation z Spread-spectrum operation for optimal EMC compliance z 2.5 - 5.5V single supply operation; very low power z Enhanced power supply & thermal drift rejection z 14-pin TSSOP Pb-free package z Compatible with clear ITO over.
