QT60161B 16 KEY QMATRIX KEYPANEL SENSOR IC

Quantum

QT60161B Description

LQ QT60161B 16 KEY QMatrix™ KEYPANEL SENSOR IC Advanced second generation QMatrix controller 16 touch keys through any dielectric 100% autocal for l.

QT60161B Applications

* - Security keypanels Industrial keyboards Appliance controls Outdoor keypads ATM machines Touch-screens Automotive panels Machine tools The QT60161B digital charge-transfer (“QT”) QMatrix™ IC is designed to detect human touch on up 16 keys when used in conjunction with a scanned, passive X-Y ma

📥 Download Datasheet

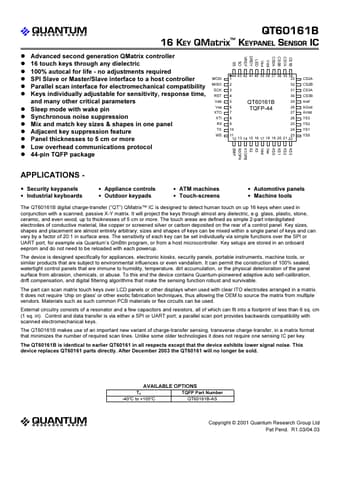

QT60161B Datasheet Preview — Preview of QT60161B PDF

Datasheet Details

Part number: QT60161B
Manufacturer: Quantum
File Size: 671.23 KB
Datasheet: QT60161B-Quantum.pdf
Description: 16 KEY QMATRIX KEYPANEL SENSOR IC
