QA456 - High Voltage Amplifier

📥 Download Datasheet

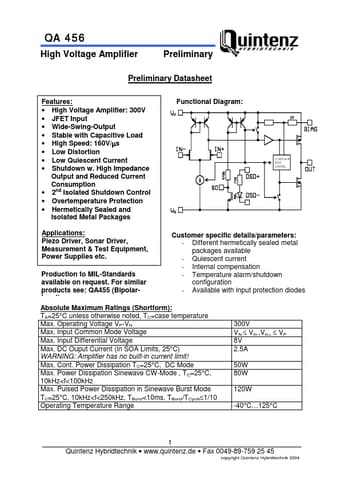

QA456 Datasheet Preview — Preview of QA456 PDF

datasheet Preview Page 2

Datasheet Details

Part number	QA456
Manufacturer	Quintenz
File Size	23.68 KB
Description	High Voltage Amplifier
Datasheet	QA456-Quintenz.pdf

QA456 Product details

Features

High Voltage Amplifier: 300V.
JFET Input.
Wide-Swing-Output.
Stable with Capacitive Load.
High Speed: 160V/µs.
Low Distortion.
Low Quiescent Current.
Shutdown w. High Impedance Output and Reduced Current Consumption.
2nd Isolated Shutdown Control.
Overtemperature Protection.
Hermetically Sealed and Isolated Metal Packages Functional Diagram:.
