QX5252 Solar LED Driver

Qxmd

QX5252 Description

General .
QX5252 is an ASIC for solar LED lawn lights.

QX5252 Features

* Operating Voltage: 0.9V~1.5V
* 3mA~300mA Output current
* Patented over-discharge protection: shutdown without flicker
* Integrated light control switch
* Integrated Schottky Diode
* Only an external inductor is requierd
* High Efficiency
* Low quiescent current: 17

QX5252 Applications

* Solar lawn
* Solar Landscape Typical Application SBAT BAT L1 VSS LX QX5252 QX5252 L1 BAT R1 LS R2 SBAT VSS LX (a)Uses solar panel to achieve light control (b) Uses photo-resistor to achieve light control Figure 1：Typical Application Circuit Diagrams of QX5252 QX5252_DS03EN Q

📥 Download Datasheet

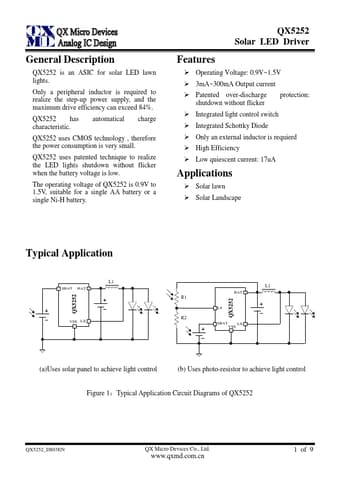

QX5252 Datasheet Preview — Preview of QX5252 PDF

Datasheet Details

Part number: QX5252
Manufacturer: Qxmd
File Size: 379.00 KB
Datasheet: QX5252_Qxmd.pdf
Description: Solar LED Driver
