RA8860 Datasheet - RAiO

RA8860 80 x 2 dots 16-Colors LCD Driver

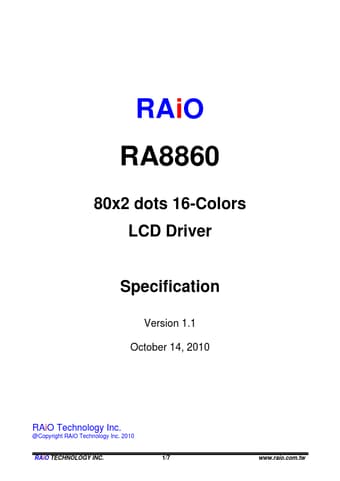

RAiO RA8860 80x2 dots 16-Colors LCD Driver Specification Version 1.1 October 14, 2010 RAiO Technology Inc. @Copyright RAiO Technology Inc. 2010 RAiO TECHNOLOGY INC. 1/7 www.raio.com.tw Version 1.1 RA8860 80x2 Dots 16-Color LCD Driver 1. Overview The RA8860 is a LCD Driver & Controller for Field Sequential Liquid Crystal Display (FSLCD) systems. It contains 80 segment and 2 common driver circuits. This chip is connected directly to a MCU, support 3-wire, 4-wire serial peripheral interface (.

RA8860 Features

* ‹ 80Seg x 2Com Drive Outputs ‹ Supports Serial I2C, 3/4-wires MCU Interface ‹ Supports 8 or 16 Colors Display ‹ Build-in 640-bits Display RAM ‹ Duty: Static, 1/2 Duty ‹ Bu

RA8860-RAiO.pdf

Preview of RA8860 PDF
RA8860 Datasheet Preview Page 2 RA8860 Datasheet Preview Page 3

Datasheet Details

Part number:

RA8860

Manufacturer:

RAiO

File Size:

79.12 KB

Description:

80 x 2 dots 16-colors lcd driver.
