1N5218 - Rectifiers

This page provides the datasheet information for the 1N5218, a member of the 1N5211 Rectifiers family.

📥 Download Datasheet

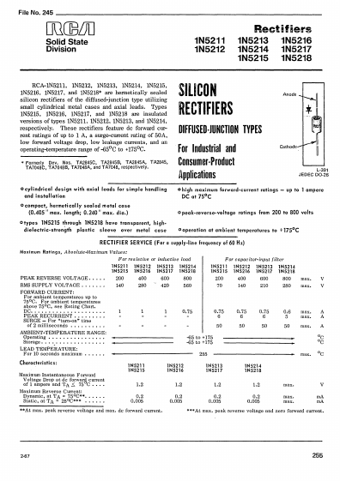

Datasheet preview – 1N5218

Datasheet Details

Part number 1N5218
Manufacturer RCA
File Size 127.31 KB
Description Rectifiers
Datasheet download datasheet 1N5218 Datasheet
Additional preview pages of the 1N5218 datasheet.

📁 Similar Datasheet

  • 1N5208 - Planar Diodes (Advanced Power Devices)
  • 1N5220 - SILICON PLANAR ZENER DIODES (SEMTECH)
  • 1N5220 - SILICON PLANAR ZENER DIODES (JINAN JINGHENG)
  • 1N5220 - SILICON PLANAR ZENER DIODES (Zowie)
  • 1N5221 - SILICON PLANAR ZENER DIODES (Zowie)
  • 1N5221 - SILICON PLANAR ZENER DIODES (SEMTECH)
  • 1N5221 - 500mW GLASS AXIAL-LEAD ZENER DIODES (Microsemi)
  • 1N5221 - Zener Diodes (GOOD-ARK)
  • 1N5221 - SILICON PLANAR ZENER DIODES (JINAN JINGHENG)
  • 1N5221 - ZENER DIODES (EIC)
Other Datasheets by RCA

Full PDF Text Transcription

Click to expand full text
File No. 245 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ DDJIBLJD Solid State Division 1N5211 1N5212 Rectifiers 1N5213 1N5216 1N5214 1N5217 1N5215 1N5218 RCA-1N5211. IN5212. IN5213. IN5214. 1N5215. 1N5216. IN5217. and IN5218* are hermetically sealed silicon rectifiers of the diffused-junction type utilizing small cylindrical metal cases and axial leads. Types IN5215. IN5216. IN5217. and IN5218 are insulated versions of types IN5211. IN5212. IN5213. and IN5214. respectively. These rectifiers feature de forward current ratings of up to 1 A. a surgEH!urrent rating of 50A. low forward voltage droP. low leakage currents. and an operating-temperature range of -650 C to +1750 C. • Formerly Dev. Nos.
