40897, 40894 Power Transistors

40897 Description

File No.548 Dl(]5LJ[J Solid State Division RF Power Transistors 40894 40896 40895 40897 JEDEC TO *72 H-1299 High - Frequency Silicon N-P-N Tra.

40897 Features

* High gain
* bandwidth products: fT = 1200 MHz typo for tuner types = 800 MHz typo for if-amplifier types
* Very low collector
* to
* base feedback capacitance: Ccb = 0.7 pF typo for 40894.40895
* Low noise figure: 3 dB typo at 200 MHz for rf amplifier type RCA-40894

40897 Applications

* requiring minimum feedback capacitance. shielding of the device. or both.
* High power gain

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 40897, 40894. Please refer to the document for exact specifications by model.

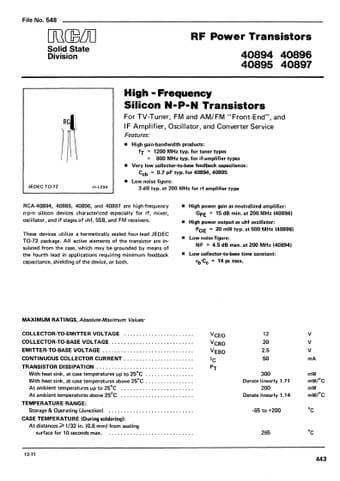

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
40897, 40894
Manufacturer
RCA
File Size
241.03 KB
Datasheet
40894-RCA.pdf
Description
Power Transistors
Note
This datasheet PDF includes multiple part numbers: 40897, 40894.
Please refer to the document for exact specifications by model.
