41506 Power Transistors

41506 Description

File No.776 _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ DDJIDLJD Solid State Division Power Transistors 41506 High-Voltage, H.

41506 Features

* Maximum safe-area-of-operation curves a Low saturation voltage: VCE(satl ~ 1.5 V (max. ) . . High voltage rating: VCEO(SUS) ~ 200 V
* High dissipation rating: PT ~ 100 W The RCA-41506 is an epitaxial silicon n-p-n power transistor utilizing a multiple-emitter- site structure. This

📥 Download Datasheet

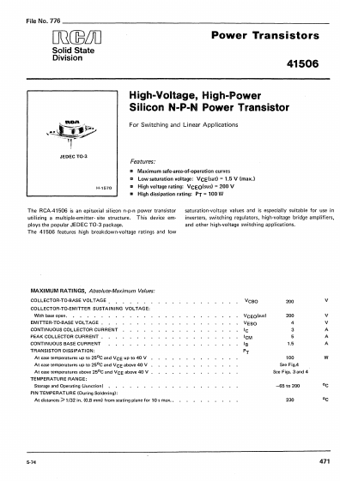

Preview of 41506 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
41506
Manufacturer
RCA
File Size
250.85 KB
Datasheet
41506-RCA.pdf
Description
Power Transistors
