CH3053 Power Transistors

CH3053 Description

_ _~_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ FileNo.632 OOCD5LJO Solid State Division Power Transistors CH2102 CH3439 CH2270 CH3440 .

CH3053 Features

* Prepared and tested for use in hybrid qircuits
* hFE ratings from 30 to 50 (min. )
* ICBO leakage ratings in the 10 IlA to 1 mA range
* VCEO ratings up to 90 V on planar transistor chips; up to 325 V on passivated mesa ty pes H-1B01
* IC up to 12 A (C

📥 Download Datasheet

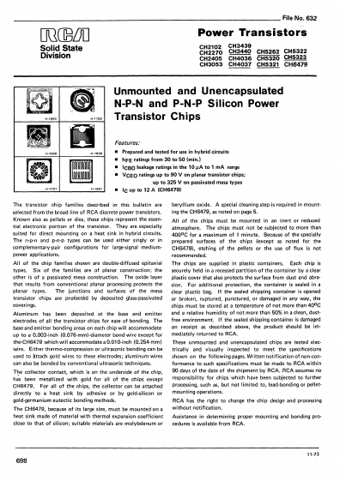

Preview of CH3053 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CH3053
Manufacturer
RCA
File Size
343.17 KB
Datasheet
CH3053-RCA.pdf
Description
Power Transistors
